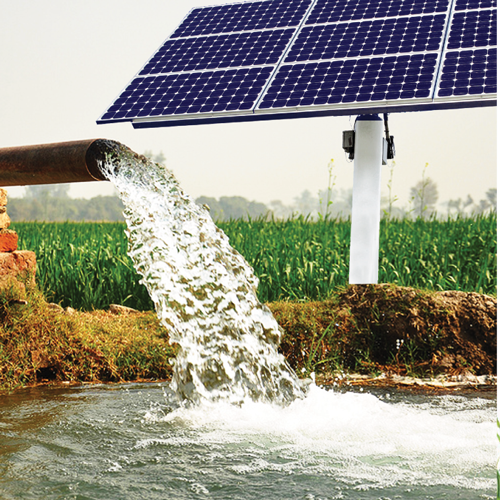

3HP SOLAR WATER PUMPING SYSTEM

3HP SOLAR WATER PUMPING SYSTEM Specification

Features
Eco-friendly, Maintenance Free, No Fuel Required, Long Service Life

Input Voltage
380 Volt (V)

Maintenance Type
Low Maintenance-periodic cleaning of solar panels; pump requires minimal maintenance

Efficiency
Solar panel up to 18%; pump efficiency 60-70%

Product Type
Solar Water Pumping System

Material
High-efficiency polycrystalline/monocrystalline silicon, SS/CI pump body

Number of Cells
72 cells per panel (standard)

Power
3 Horsepower (HP)

Operating Temperature
-10C to 50C

Max Voltage
37-45V DC (per panel), system dependent

Max System Voltage
1000V DC

Output Voltage
415 Volt (V)

Cable Length
Customizable as per installation requirement

Switch Mode
Automatic/Manual Switching

Size
Panel size and pump size customizable

Dimension (L*W*H)
Depends on array and pump; common for 3HP system: 2400mm * 1200mm * 40mm (per panel)

Color
Blue/Black (solar panels); Silver/Grey (pump)

Weight
Depends on configuration, approx. 60-80 kg for full system

Warranty
1 YEAR

Application
Agricultural Irrigation, Drinking Water Supply, Livestock Watering, Rural Water Supply

Type Of Technology
Photovoltaic Solar with Brushless DC/AC Pump

Installation Type
Ground Mounted or Borewell Submersible

Maximum Head
70-90 meters (varies-specify at order)

Communication Interface
Optional remote monitoring via GSM/GPRS

Flow Rate
25000 - 30000 LPD (liters per day), depending on head and sunlight

Panel Orientation
Adjustable Tilt Angle (manual or automatic option)

Start-up Mode
Soft Start, Dry Run Protection

Mounting Structure Material
Galvanized Iron/Aluminum

Protection Grade
IP65 for controller and pump motor

Controller Type
MPPT (Maximum Power Point Tracking) Solar Pump Controller

3HP SOLAR WATER PUMPING SYSTEM About

3HP Solar Water Pumping System is a trusted supplier of high-efficiency Solar Pumps, designed to meet the growing demand for sustainable and cost-effective water pumping in agriculture, domestic, and industrial applications. Our solar pumps run directly on solar energy, reducing electricity costs and enabling off-grid operation in rural areas.

Key Features:

Available in AC and DC pump variants
Power range: 0.5 HP to 10 HP
Submersible and surface pump options
High-efficiency MPPT-based solar controllers for maximum power output
Durable construction with corrosion-resistant stainless steel body
Low maintenance and long service life
Built-in protections: dry run, overload, short circuit, reverse polarity
Optional hybrid operation (solar + grid/diesel)

Product Range:

Submersible Solar Pumps Ideal for deep borewells
Surface Solar Pumps Suitable for open wells, ponds, and rivers
AC/DC Solar Pumps Versatile compatibility with solar inverters/controllers
3 HP, 5 HP, 7.5 HP, and 10 HP variants in stock

Applications:

Agricultural irrigation (drip & sprinkler)
Drinking water supply in rural areas
Livestock watering
Government solar pump subsidy schemes
Water lifting from borewells and wells

Key Features:

Available in AC and DC pump variants
Power range: 0.5 HP to 10 HP
Submersible and surface pump options
High-efficiency MPPT-based solar controllers for maximum power output
Durable construction with corrosion-resistant stainless steel body
Low maintenance and long service life
Built-in protections: dry run, overload, short circuit, reverse polarity
Optional hybrid operation (solar + grid/diesel)

Product Range:

Submersible Solar Pumps Ideal for deep borewells
Surface Solar Pumps Suitable for open wells, ponds, and rivers
AC/DC Solar Pumps Versatile compatibility with solar inverters/controllers
3 HP, 5 HP, 7.5 HP, and 10 HP variants in stock

Applications:

Agricultural irrigation (drip & sprinkler)
Drinking water supply in rural areas
Livestock watering
Government solar pump subsidy schemes
Water lifting from borewells and wells

Effortless Power and Performance

Harnessing the sun, this 3HP solar water pumping system provides potent, dependable flow rates for diverse water needs. MPPT-controlled and efficient, it operates autonomously with built-in soft start and dry run protection. Adjustable panel orientation ensures maximum energy capture regardless of seasonal changes.

Versatile Design and Easy Installation

With ground or borewell submersible configurations, robust mounting options in galvanized iron or aluminum, and customizable cable lengths, this system adapts to varied installation environments. The modular structure and IP65 protection make it resilient in harsh rural and farming conditions.

Minimal Maintenance, Long Service Life

Employing premium solar and pump components, the system is designed for longevity with minimal maintenance-a periodic cleaning of panels and occasional checks on the pump suffice. Its brushless technology ensures durability and reduced downtime, maximizing your return on investment.

FAQ's of 3HP SOLAR WATER PUMPING SYSTEM:

Q: How does the MPPT controller improve the efficiency of the 3HP solar water pumping system?

A: The Maximum Power Point Tracking (MPPT) controller automatically adjusts operating parameters to extract the highest possible power from the solar panels, optimizing pump performance even under fluctuating sunlight conditions for consistent water output.

Q: What are the main applications for this solar water pumping system?

A: This system is ideal for agricultural irrigation, drinking water supply, livestock watering, and rural water projects, thanks to its high flow rate, substantial head capacity, and reliable solar-powered operation.

Q: When is the best time to operate the solar water pump for maximum efficiency?

A: Maximum efficiency is achieved during peak sunlight hours, typically late morning to early afternoon, ensuring the pump operates at optimal capacity for water delivery based on real-time solar energy.

Q: Where can the solar panels and pump be installed?

A: Panels are mounted on ground structures or rooftops in sunlit locations, with orientation adjustable manually or automatically. The pump can be set up for ground-level or borewell submersible applications, depending on water source requirements.

Q: What is the process for installing and commissioning the system?

A: The typical installation involves assembling the mounting structure, affixing the panels and pump, connecting the MPPT controller, and verifying all safety and switching systems. Cable length and configuration are customized to site needs. Commissioning includes testing system function and protective features.

Q: How is this solar pump system maintained?

A: Maintenance is simple: clean the solar panels periodically to remove dirt for maximum absorption, and conduct occasional inspections of electrical connections and the pump. The brushless design and sturdy materials minimize wear and required intervention.

Q: What benefits does the 3HP solar water pumping system offer compared to traditional pumps?

A: This system operates without fuel, incurs lower running costs, and has minimal environmental impact. It is engineered for reliability, requires little oversight, offers straightforward installation, and delivers long service life, even in remote locations.
