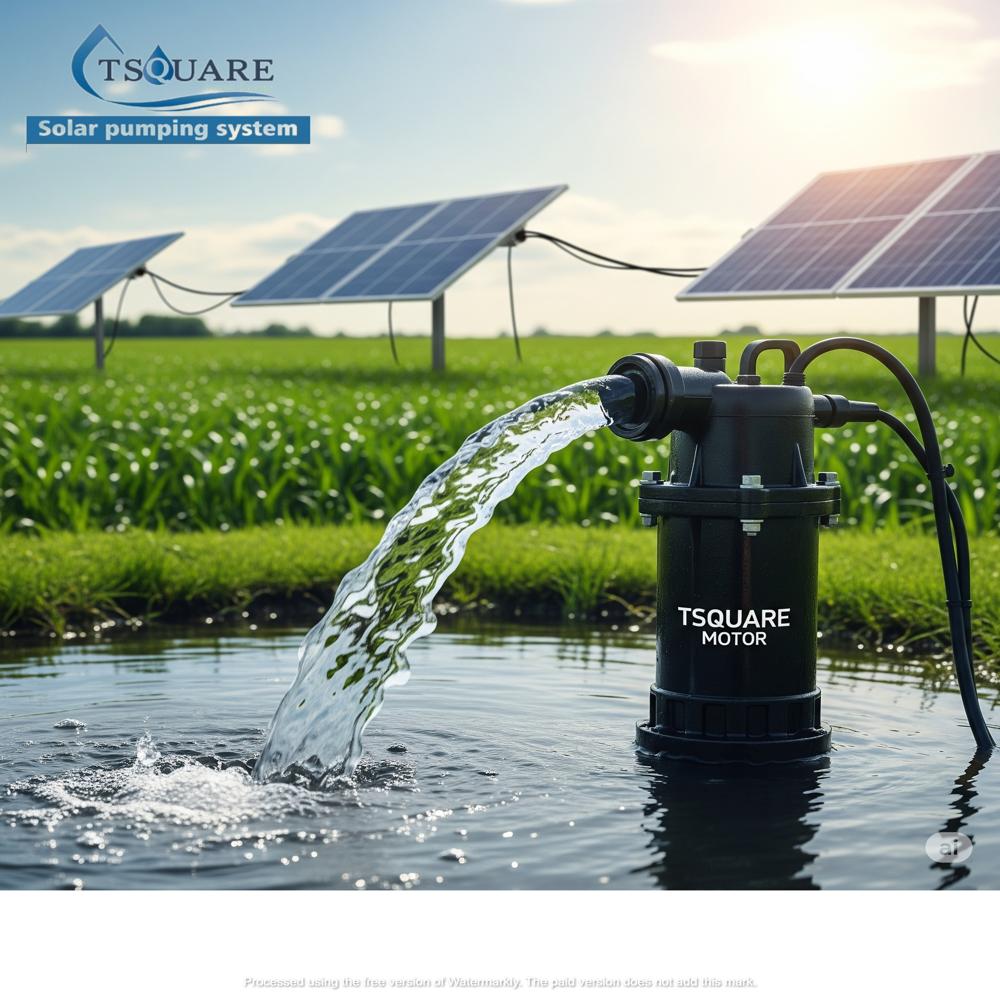

5HP Solar Agriculture Water Pump

5HP Solar Agriculture Water Pump Specification

Input Voltage
440V AC or 96-360V DC (solar input)

Features
Eco-friendly, Off-grid, Maintenance-free, Easy Installation, High Discharge Head

Efficiency
Above 90% (Motor), Panel 16-21% (solar conversion)

Maintenance Type
Low; minimal routine maintenance required

Product Type
Solar Agriculture Water Pump

Material
SS

Number of Cells
Varies (depending on solar panel configuration, typically 80-100 cells per array)

Power
5 Horsepower (HP)

Operating Temperature
-10C to 50C

Max Voltage
Up to 400V (system dependent)

Max System Voltage
1000V DC (solar array)

Output Voltage
380V AC (three phase)

Cable Length
2 Meter (m)

Switch Mode
Automatic/Manual

Size
Standard compact submersible pump dimensions

Dimension (L*W*H)
Approx. 600mm x 250mm x 250mm

Color
Black (Pump Body), Silver/Grey (Fittings)

Weight
25-35 kg

Warranty
1 YEAR

Application
Agricultural irrigation, Water transfer, Drip & sprinkle systems, Rural water supply

Type Of Technology
Photovoltaic Solar Pumping Technology

Installation Type
Ground Mounted Panels, Submersible Pump Installation

Mounting Structure
Galvanized Iron mounting (rust-proof)

Noise Level
<65 dB

Controller
Intelligent MPPT solar controller included

Motor Type
Brushless DC Motor

Pump Type
Submersible, Centrifugal Impeller

Solar Panel Type
Polycrystalline or Monocrystalline

Discharge Rate
Up to 80,000 LPD (Litres Per Day) depending on head

Start Up
Soft Start; works with low sunlight

Water Source Compatibility
Borewell, Pond, River, Lake

Flow Rate
30-60 m3/hr (Varies as per site conditions)

Solar Panel Power
4500 - 6000W (depending on sunlight and efficiency)

Pump Outlet Size
2 to 4 inch standard

Protection Features
Overload, Dry run, Over temperature, Reverse polarity

Maximum Head
Up to 70 meters

5HP Solar Agriculture Water Pump About

5HP Solar Agriculture Water Pump is a trusted supplier of high-efficiency Solar Pumps, designed to meet the growing demand for sustainable and cost-effective water pumping in agriculture, domestic, and industrial applications. Our solar pumps run directly on solar energy, reducing electricity costs and enabling off-grid operation in rural areas.

Key Features:

Available in AC and DC pump variants
Power range: 0.5 HP to 10 HP
Submersible and surface pump options
High-efficiency MPPT-based solar controllers for maximum power output
Durable construction with corrosion-resistant stainless steel body
Low maintenance and long service life
Built-in protections: dry run, overload, short circuit, reverse polarity
Optional hybrid operation (solar + grid/diesel)

Product Range:

Submersible Solar Pumps Ideal for deep borewells
Surface Solar Pumps Suitable for open wells, ponds, and rivers
AC/DC Solar Pumps Versatile compatibility with solar inverters/controllers
3 HP, 5 HP, 7.5 HP, and 10 HP variants in stock

Applications:

Agricultural irrigation (drip & sprinkler)
Drinking water supply in rural areas
Livestock watering
Government solar pump subsidy schemes
Water lifting from borewells and wells

High-Performance, Eco-Friendly Irrigation

Harness the power of the sun with this 5HP solar water pump, engineered for sustainable agricultural irrigation and rural water supply. The system leverages photovoltaic technology, delivering reliable water flow even on cloudy days, thanks to its soft start and intelligent MPPT controller. Built with galvanized iron mounting for long-lasting durability, this pump offers efficient operation and low maintenance, making it a practical investment for farmers and landowners.

Intelligent Control for Maximum Efficiency

Featuring an advanced intelligent MPPT solar controller, this pump automatically optimizes power delivery to maximize output and efficiency. Whether you need manual or automatic operation, the easy-to-use control system adapts to changing water demands and sunlight availability. Enhanced with comprehensive protection features, it ensures safe operation under varying environmental and electrical conditions.

FAQ's of 5HP Solar Agriculture Water Pump:

Q: How does the 5HP Solar Agriculture Water Pump operate during low sunlight conditions?

A: The pump uses a soft start feature and an intelligent MPPT solar controller, allowing it to function efficiently during periods of low sunlight by optimizing available solar energy.

Q: What types of water sources can this solar pump be used with?

A: This pump is compatible with borewells, ponds, rivers, and lakes, making it suitable for various agricultural and rural water transfer applications.

Q: When is regular maintenance required for this solar water pump?

A: Routine maintenance is minimal due to its efficient design and brushless DC motor. Occasional inspections and simple cleaning are generally sufficient for long-term performance.

Q: Where should the solar panels and pump be installed?

A: Solar panels should be ground-mounted in an area with maximum sun exposure, while the submersible pump is installed within the chosen water source. Galvanized iron mounting structures provide sturdy, rust-proof support for the panels.

Q: What is the process for installing the pump and solar panels?

A: Installation is straightforward: mount the solar panels on the ground, connect the system via the provided cables (2 meters included), and submerge the pump in the desired water source. Professional installation is recommended for optimal efficiency and safety.

Q: How does this solar pump benefit agricultural irrigation?

A: This system provides a reliable, off-grid water supply, reduces energy costs, and supports eco-friendly irrigation by using renewable solar power. It delivers high discharge rates and can be used for drip, sprinkle, and conventional irrigation methods.

Q: What protection features are included in the pump system?

A: The system is safeguarded with overload, dry run, over temperature, and reverse polarity protection, ensuring safe and uninterrupted operation under diverse conditions.
