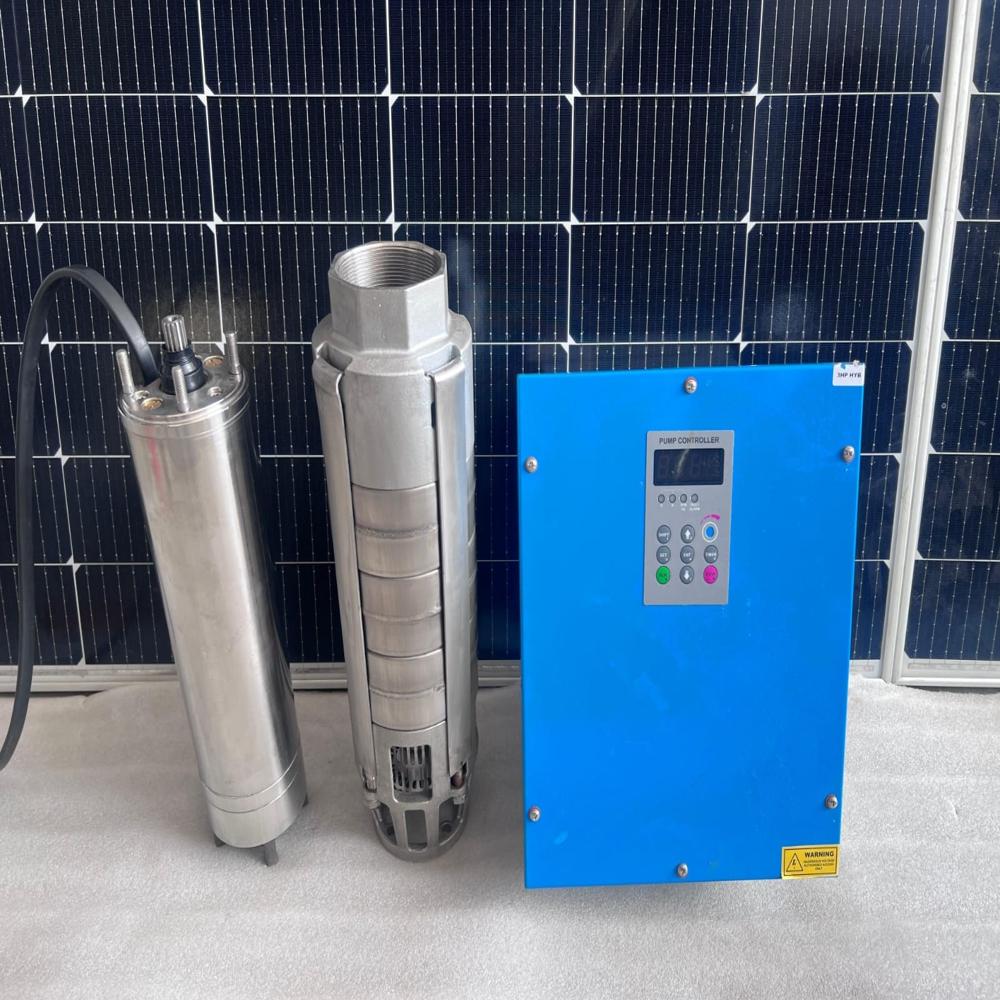

SOLAR DC MOTOR PUMP CONTROLLER -0.5 HP

SOLAR DC MOTOR PUMP CONTROLLER -0.5 HP Specification

Efficiency
Up to 98%

Input Voltage
24V-50V DC

Maintenance Type
Low/Maintenance-free

Features
Digital Display, Protection Circuit, High Reliability

Product Type
Solar DC Motor Pump Controller

Material
Stainless Steel (Pump), Metal/Plastic (Controller Enclosure)

Number of Cells
Suitable for 72-cell Solar Panel Array

Power
0.5 HP

Operating Temperature
-10C to 50C

Max Voltage
40V DC

Max System Voltage
48V DC

Output Voltage
36V DC

Cable Length
Customizable/As per requirement

Switch Mode
Automatic/Manual

Size
Compact/Standard

Dimension (L*W*H)
300mm x 250mm x 100mm (Controller Enclosure)

Color
Blue (Controller), Silver (Pump)

Weight
Approx. 4 kg (Controller)

Application
Solar Water Pumping for Agriculture, Irrigation, Drinking Water

Type Of Technology
MPPT (Maximum Power Point Tracking) based

Installation Type
Wall Mounted (Controller), Submersible (Pump)

Pump Type
Submersible DC Pump

Max Head
Up to 30 meters

Communication
Optional RS485/Modbus

Compatible Solar Panel
Suitable for Polycrystalline or Monocrystalline

Max Flow Rate
Up to 35 LPM (Litres Per Minute)

Ambient Humidity
0-95% RH, non-condensing

Control Panel Material
Powder Coated MS/Aluminium

Protection Features
Over-voltage, Under-voltage, Overload, Dry Run

Controller Display Type
LCD Digital

Ingress Protection
IP65 (Controller Enclosure)

SOLAR DC MOTOR PUMP CONTROLLER -0.5 HP About

T Square Motor is a trusted supplier of high-efficiency Solar Pumps, designed to meet the growing demand for sustainable and cost-effective water pumping in agriculture, domestic, and industrial applications. Our solar pumps run directly on solar energy, reducing electricity costs and enabling off-grid operation in rural areas.

Key Features:

Available in AC and DC pump variants
Power range: 0.5 HP to 10 HP
Submersible and surface pump options
High-efficiency MPPT-based solar controllers for maximum power output
Durable construction with corrosion-resistant stainless steel body
Low maintenance and long service life
Built-in protections: dry run, overload, short circuit, reverse polarity
Optional hybrid operation (solar + grid/diesel)

Product Range:

Submersible Solar Pumps Ideal for deep borewells
Surface Solar Pumps Suitable for open wells, ponds, and rivers
AC/DC Solar Pumps Versatile compatibility with solar inverters/controllers
3 HP, 5 HP, 7.5 HP, and 10 HP variants in stock

Applications:

Agricultural irrigation (drip & sprinkler)
Drinking water supply in rural areas
Livestock watering
Government solar pump subsidy schemes
Water lifting from borewells and wells

Why Choose T Square Motor?

Quality-assured solar pump solutions
Competitive pricing and ready stock
Expert guidance on solar system sizing
PAN India delivery and after-sales support

Go green and power your water needs with the sun.
Contact T Square Motor for high-performance Solar Pumps at the best price.

Advanced Digital Control and Display

Equipped with an LCD digital display, this solar DC motor pump controller offers real-time monitoring and user-friendly operation. The intuitive interface empowers users to set operating modes, monitor system status, and receive notifications on protective features, ensuring seamless and safe performance even in fluctuating voltage conditions.

Reliable and Durable Construction

Built with a powder-coated mild steel/aluminium control panel and a stainless steel submersible DC pump, the system resists corrosion and wear. The enclosure provides IP65-rated protection against dust and water ingress, making it suitable for challenging outdoor agricultural environments and ensuring longevity with minimal maintenance.

Efficient and Flexible Solar Compatibility

This controller and pump system are compatible with both polycrystalline and monocrystalline 72-cell solar panel arrays. Using advanced MPPT technology, it maximizes energy harvest from panels within 24V-50V DC input, delivering up to 98% efficiency for water pumping needs ranging from irrigation to drinking water.

FAQ's of SOLAR DC MOTOR PUMP CONTROLLER -0.5 HP:

Q: How do I install the SOLAR DC MOTOR PUMP CONTROLLER and submersible pump?

A: Installation is straightforward: mount the controller on a wall in a suitable outdoor location using the provided enclosure, ensuring access to the display and controls. Connect the controller to your 72-cell solar panel array and to the submersible pump (suitable for well or tank). Follow provided wiring diagrams, and ensure all connections are secure. Professional installation is recommended for safety and optimal performance.

Q: What types of solar panels are compatible with the 0.5 HP pump controller?

A: The system is compatible with both polycrystalline and monocrystalline 72-cell solar panel arrays. It operates efficiently with input voltages ranging from 24V to 50V DC, with a maximum system voltage of 48V DC, making it flexible for various panel configurations.

Q: What protection features are included with the controller?

A: The controller safeguards your system with protections against over-voltage, under-voltage, overload, and dry run operations. These features help prevent damage to the pump and electrical components, increasing system reliability and reducing maintenance requirements.

Q: When is it beneficial to use the automatic versus manual switch mode?

A: The automatic mode is ideal for environments where unattended operation is preferred, as the controller will manage pumping based on water levels and system status. Manual mode is useful during maintenance or troubleshooting when direct control of the pump is needed.

Q: Where can this controller and pump system be used?

A: This solution is designed for solar water pumping applications such as agricultural irrigation, livestock watering, and drinking water supply in rural or off-grid settings. The IP65-rated enclosure allows reliable operation in outdoor and humid environments (0-95% RH, non-condensing).

Q: How does the MPPT technology benefit the system's performance?

A: Maximum Power Point Tracking (MPPT) technology dynamically adjusts the operating point of the solar panels to ensure maximum energy conversion efficiency, even under varying sunlight. This results in improved water output and optimal use of solar energy throughout the day.
