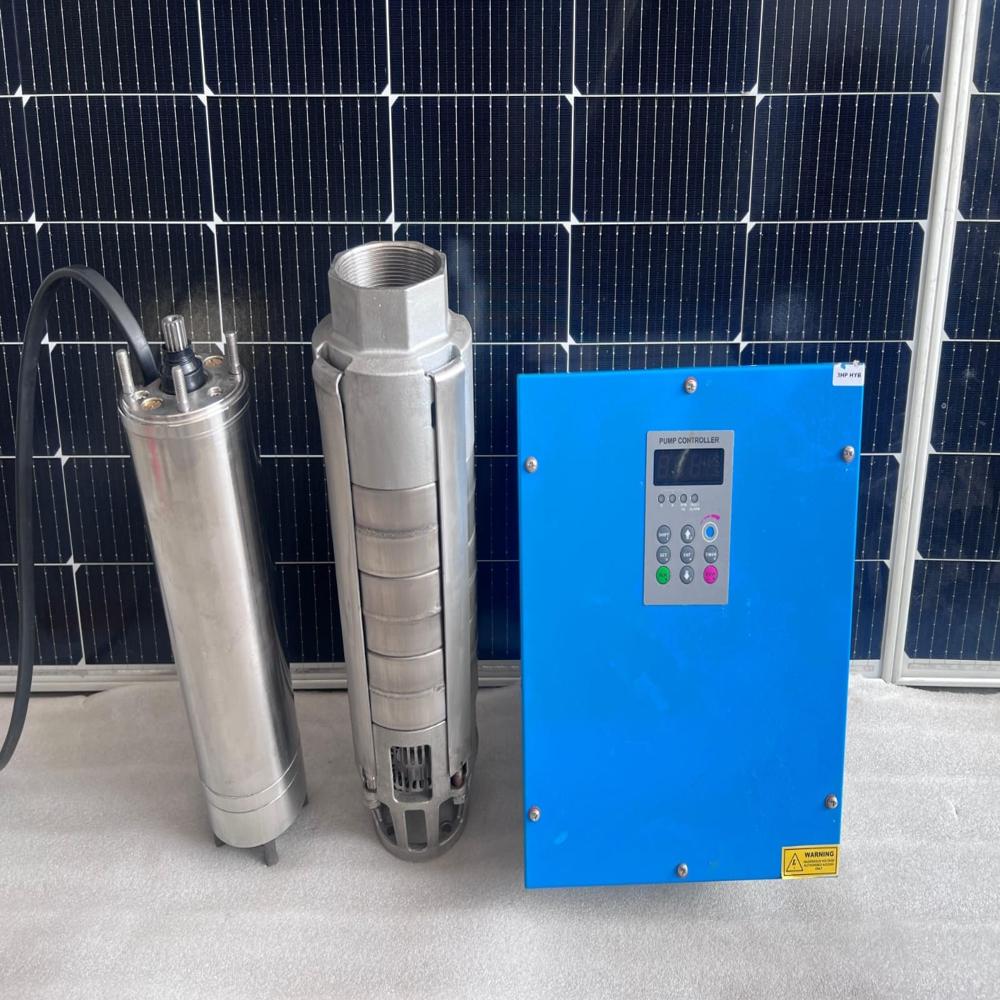

SOLAR AC MOTOR PUMP CONTROLLER - 1 HP

SOLAR AC MOTOR PUMP CONTROLLER - 1 HP Specification

Maintenance Type
Low maintenance

Input Voltage
150V-440V DC (PV Input), 220V/380V AC (Grid Input)

Features
Digital display, dry run protection, over/under voltage protection, soft start, remote monitoring (optional)

Efficiency
>90% (controller conversion efficiency)

Product Type
SOLAR AC MOTOR PUMP CONTROLLER - 1 HP

Material
Stainless Steel (motor & pump), Powder Coated Steel (controller)

Number of Cells
N/A (depends on solar panel design, not included)

Power
1 HP

Operating Temperature
-10C to 50C

Max Voltage
400V AC (Controller limit)

Max System Voltage
1000V DC (PV input, if solar powered)

Output Voltage
220V AC (single phase) or 380V AC (three phase) depending on model

Cable Length
Customizable as per installation requirement

Switch Mode
Automatic/Manual Switch

Size
Standard, as per submersible and controller dimensions

Dimension (L*W*H)
Controller box approx. 340mm x 260mm x 165mm

Color
Blue (controller box), Silver (pump and motor)

Weight
Controller weight approx. 7kg; Pump + Motor combined approx. 22kg (may vary)

Application
Agricultural irrigation, water supply, rural water systems

Type Of Technology
Solar-AC hybrid VFD (Variable Frequency Drive) controller

Installation Type
Wall/DIN rail mounting for controller, vertical for pump

Mounting
Wall mounting kit (controller)

Starting Method
Soft Start via VFD

Control Method
MPPT (Maximum Power Point Tracking) for Solar

Protection Degree
IP65 (Controller)

Communication Interface
RS-485 (optional for remote monitoring)

Pump Type Supported
Submersible, Surface, Centrifugal AC Pumps

Accessories Included
Operation manual, mounting hardware (optional)

Cooling Type
Air Cooled (Controller)

Rated Current
Approx. 4-5A (at full load)

Display Type
LED/LCD digital panel

Ambient Humidity
Max 95% RH, non-condensing

SOLAR AC MOTOR PUMP CONTROLLER - 1 HP About

1HP AC Solar Pump is a trusted supplier of high-efficiency Solar Pumps, designed to meet the growing demand for sustainable and cost-effective water pumping in agriculture, domestic, and industrial applications. Our solar pumps run directly on solar energy, reducing electricity costs and enabling off-grid operation in rural areas.

Key Features:

Available in AC and DC pump variants
Power range: 0.5 HP to 10 HP
Submersible and surface pump options
High-efficiency MPPT-based solar controllers for maximum power output
Durable construction with corrosion-resistant stainless steel body
Low maintenance and long service life
Built-in protections: dry run, overload, short circuit, reverse polarity
Optional hybrid operation (solar + grid/diesel)

Product Range:

Submersible Solar Pumps Ideal for deep borewells
Surface Solar Pumps Suitable for open wells, ponds, and rivers
AC/DC Solar Pumps Versatile compatibility with solar inverters/controllers
3 HP, 5 HP, 7.5 HP, and 10 HP variants in stock

Applications:

Agricultural irrigation (drip & sprinkler)
Drinking water supply in rural areas
Livestock watering
Government solar pump subsidy schemes
Water lifting from borewells and wells

High-Efficiency and Flexible Control

Equipped with an advanced VFD controller and MPPT, the system maximizes solar energy conversion while providing soft starts and precise control over your pump. Compatible with both single and three-phase AC pumps, this controller delivers consistent water supply even in fluctuating sunlight, supporting applications in irrigation, water supply, and remote locations.

Rugged, Reliable, and User-Friendly Design

Built to perform in harsh environments, the controller's IP65 enclosure resists water and dust, while the stainless-steel motor and pump offer long-term durability. The LED/LCD digital panel makes status checks and setup straightforward. Low maintenance and various mounting options add to its convenience and ease of use.

FAQ's of SOLAR AC MOTOR PUMP CONTROLLER - 1 HP:

Q: How do I install the SOLAR AC MOTOR PUMP CONTROLLER for my water pump?

A: The controller can be mounted on a wall or DIN rail using the included mounting kit. The pump should be installed vertically, with all electrical connections made according to the operation manual for safety and optimal performance. Select the appropriate output settings for your pump (single or three-phase).

Q: What pumps are compatible with this controller?

A: The controller supports a wide range of AC pumps, including submersible, surface, and centrifugal types. It is designed for 1 HP pumps with a rated current around 4-5A and can be used in agricultural, water supply, or rural water systems.

Q: What protections are integrated into the system?

A: The controller offers dry run protection, over and under voltage protection, and a soft start feature to guard both pump and system. Its IP65 enclosure adds dust and water ingress protection for reliable outdoor use.

Q: When should I use the automatic versus manual switch mode?

A: Automatic mode is ideal for routine or remote operations, as it allows the controller to start and stop the pump based on water needs and solar input. Manual mode provides direct control for maintenance or troubleshooting purposes.

Q: How does the MPPT function benefit my solar-powered pump system?

A: MPPT (Maximum Power Point Tracking) ensures your system extracts the maximum available solar energy, adjusting the power output according to sunlight conditions. This maximizes water output and overall efficiency, especially during variable sunlight.

Q: Where can I monitor or control the pump remotely?

A: Remote monitoring is possible via the optional RS-485 communication interface, enabling you to check system status or control operation from a distance if integrated with compatible remote monitoring equipment.

Q: What kind of maintenance does the controller require?

A: This controller is engineered for low maintenance. Regularly check connections, ensure the panel and enclosure remain clean and undamaged, and follow periodic inspection guidelines in the operation manual to maintain optimal performance.
