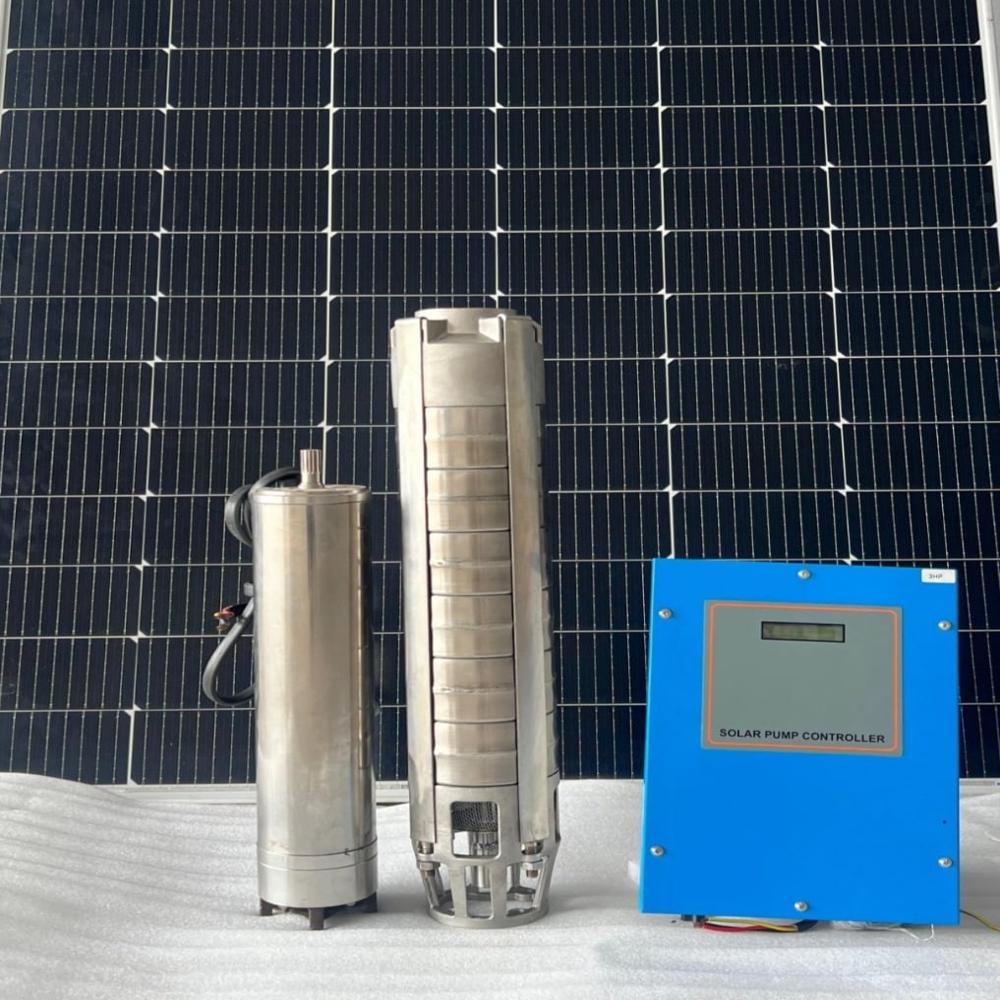

SOLAR AC MOTOR PUMP CONTROLLER -5 HP

SOLAR AC MOTOR PUMP CONTROLLER -5 HP Specification

Features
Digital Display, Overload Protection, Dry Run Protection, Reverse Polarity Protection, Soft Start, Auto/Manual Operations

Maintenance Type
Low Maintenance, occasional cleaning

Input Voltage
350-600V DC from Solar Array

Efficiency
>96% (controller)

Product Type
Solar AC Motor Pump Controller

Material
Stainless Steel, Mild Steel, ABS (Enclosure)

Number of Cells
Depends on solar array configuration

Power
5 HP

Operating Temperature
-10C to +60C

Max Voltage
600V DC (Input Max)

Max System Voltage
1000V DC

Output Voltage
415V AC (Three Phase)

Cable Length
Customizable as per requirement

Switch Mode
Automatic/Manual

Size
Standard, Controller Box approx. 350mm x 320mm x 150mm

Dimension (L*W*H)
Controller: 350mm x 320mm x 150mm; Pump: Standard - Refer Model

Color
Blue (Controller Box)

Weight
Controller approx. 9-12 Kg, Pump: as per model

Application
Agriculture, Irrigation, Water Supply, Industrial, Solar Water Pumping System

Type Of Technology
MPPT (Maximum Power Point Tracking) based drive

Installation Type
Wall/Floor Mount

Pump Type
Submersible / Centrifugal (as per selection)

Input Surge Protection
Built-in lightning and surge protection

Starting Method
Soft Start prevents hydraulic shock

Control Algorithm
MPPT-based dynamic adjustment for maximum output

Cooling Method
Air-cooled controller, Water-cooled/stainless-steel pump body

Protection Class
IP54 (Controller Unit)

Rated Frequency
50Hz/60Hz (auto-sensing/adjustable)

Humidity
0% - 95% non-condensing

Controller Display
Digital LCD for monitoring operating status and faults

Motor Type
3 Phase AC Induction Motor

Controller Compatibility
Works with mono/poly crystalline solar panels

Altitude Limit
Up to 2000 meters above sea level

Communication Interface
Optional RS485/Modbus (on request)

SOLAR AC MOTOR PUMP CONTROLLER -5 HP About

5HP AC Solar Pump is a trusted supplier of high-efficiency Solar Pumps, designed to meet the growing demand for sustainable and cost-effective water pumping in agriculture, domestic, and industrial applications. Our solar pumps run directly on solar energy, reducing electricity costs and enabling off-grid operation in rural areas.

Key Features:

Available in AC and DC pump variants
Power range: 0.5 HP to 10 HP
Submersible and surface pump options
High-efficiency MPPT-based solar controllers for maximum power output
Durable construction with corrosion-resistant stainless steel body
Low maintenance and long service life
Built-in protections: dry run, overload, short circuit, reverse polarity
Optional hybrid operation (solar + grid/diesel)

Product Range:

Submersible Solar Pumps Ideal for deep borewells
Surface Solar Pumps Suitable for open wells, ponds, and rivers
AC/DC Solar Pumps Versatile compatibility with solar inverters/controllers
3 HP, 5 HP, 7.5 HP, and 10 HP variants in stock

Applications:

Agricultural irrigation (drip & sprinkler)
Drinking water supply in rural areas
Livestock watering
Government solar pump subsidy schemes
Water lifting from borewells and wells

Efficient Solar Pump Operation

Leveraging MPPT-based technology and a soft start mechanism, the SOLAR AC MOTOR PUMP CONTROLLER ensures optimal power usage and minimal hydraulic shock. Compatible with both submersible and centrifugal pumps, this system suits varied water management needs and efficiently converts solar energy to sustained pump operation.

Robust Monitoring and Safety

Stay informed with a digital LCD display, which provides clear feedback on operating status and potential faults. The controller offers comprehensive protections such as overload, dry run, reverse polarity, and lightning/surge defenses, ensuring safe and uninterrupted usage, even in challenging environments.

Versatile, Low-Maintenance Design

This controller is engineered for dependable performance, with a durable stainless-steel and ABS enclosure. Its low maintenance requirements and high efficiency (>96%) reduce operational costs. Installation is straightforward, with support for both wall and floor mounting, and configurable cable lengths to suit your site.

FAQ's of SOLAR AC MOTOR PUMP CONTROLLER -5 HP:

Q: How does the soft start feature in the SOLAR AC MOTOR PUMP CONTROLLER benefit pump operation?

A: The soft start function gradually ramps up the motor speed, preventing sudden hydraulic shock and reducing wear on the pump components, thus extending equipment lifespan and ensuring smooth operation.

Q: What types of solar panels are compatible with this controller?

A: The controller works seamlessly with both monocrystalline and polycrystalline solar panels, operating efficiently across a broad voltage input range (350-600V DC) for flexibility in solar array design.

Q: What protective features ensure safe and reliable pump operation?

A: It includes overload, dry run, and reverse polarity protections, as well as built-in lightning and surge protection, ensuring continuous and safe operation for agricultural and industrial usage.

Q: How is the operating status of the system monitored?

A: The system incorporates a digital LCD display on the controller unit, providing real-time updates on operating parameters, system faults, and performance statistics for easy and reliable monitoring.

Q: When is maintenance required, and what does it involve?

A: Maintenance for this solar pump controller is minimal, typically involving only periodic cleaning and inspection of electrical connections to ensure ongoing efficient, trouble-free operation.

Q: Where can this controller be installed, and what environmental conditions can it withstand?

A: It can be mounted on a wall or floor and is suitable for indoor or protected outdoor settings. The IP54-rated enclosure resists dust and water spray, and it operates reliably at altitudes up to 2000 meters and temperatures between -10C and +60C.
