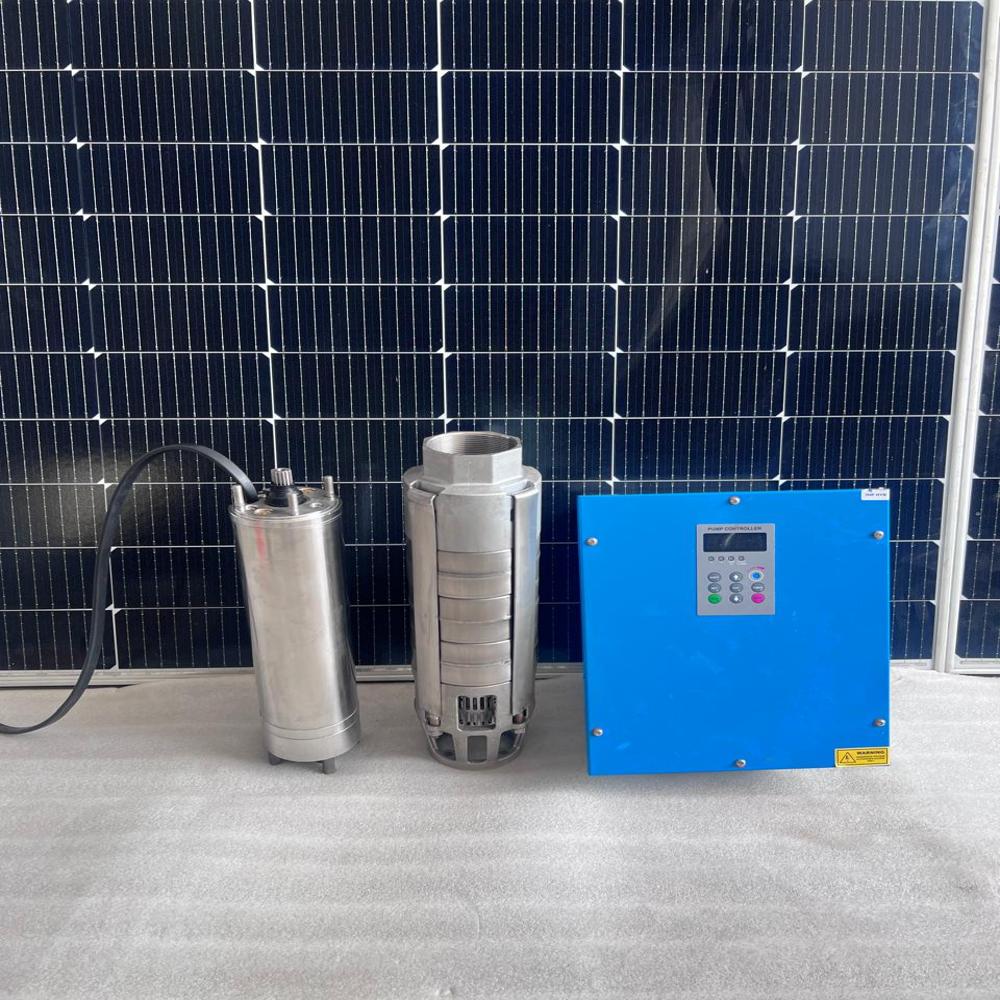

SOLAR DC MOTOR PUMP CONTROLLER -1 HP

SOLAR DC MOTOR PUMP CONTROLLER -1 HP Specification

Features
MPPT, Dry Run Protection, Over Voltage Protection, Digital Display, Auto & Manual Modes

Efficiency
Above 85% (motor and controller combined)

Maintenance Type
Low maintenance, rust-proof pump body

Input Voltage
30V-100V DC (from solar panels)

Product Type
Solar DC Motor Pump Controller - 1 HP

Material
Stainless Steel (Pump), MS Enclosure (Controller)

Number of Cells
24-36 solar cells (based on panel configuration)

Power
1 HP

Operating Temperature
-10C to 60C

Max Voltage
60V DC

Max System Voltage
100V DC

Output Voltage
48V DC (typical pump rated voltage)

Cable Length
Customizable as per installation requirement

Switch Mode
Automatic/Manual

Size
Standard compact design (Controller: Approx. 30x30 cm)

Dimension (L*W*H)
Controller: 30 cm x 30 cm x 13 cm (Approx.)

Color
Blue (controller), Metallic (pump)

Weight
Controller: ~5 Kg; Pump: ~10 Kg

Type Of Technology
DC Brushless Motor & MPPT Controller Technology

Installation Type
Surface or Submersible Pump Installation

Float Switch Compatibility
Yes, for tank full/low level protection

Pump Type
Submersible/Solar Surface DC Pump Compatible

System Expandability
Upgradeable for higher HP with suitable rating

Maximum Head
50 meter (approximate, depends on pump model)

Controller Display
Digital LCD with control keys

Usage
Remote locations, off-grid operation, standalone solar water pumping

Protection Class
IP65 weatherproof controller enclosure

Solar Panel Compatibility
Poly/Mono crystalline panels, 500-700W recommended for 1HP

Standards Followed
IS/IEC (as per system design)

Controller Functions
Soft Start, Fault Alarm, Overload Protection, Under/Over Voltage Cut-off

Controller Mounting
Wall or surface mount with included brackets

Maximum Flow Rate
100 LPM (approximate, depends on head)

Pump Capacity
Up to 10,000 liters/day delivery (1 HP rating)

SOLAR DC MOTOR PUMP CONTROLLER -1 HP About

T Square Motor is a trusted supplier of high-efficiency Solar Pumps, designed to meet the growing demand for sustainable and cost-effective water pumping in agriculture, domestic, and industrial applications. Our solar pumps run directly on solar energy, reducing electricity costs and enabling off-grid operation in rural areas.

Key Features:

Available in AC and DC pump variants
Power range: 0.5 HP to 10 HP
Submersible and surface pump options
High-efficiency MPPT-based solar controllers for maximum power output
Durable construction with corrosion-resistant stainless steel body
Low maintenance and long service life
Built-in protections: dry run, overload, short circuit, reverse polarity
Optional hybrid operation (solar + grid/diesel)

Product Range:

Submersible Solar Pumps Ideal for deep borewells
Surface Solar Pumps Suitable for open wells, ponds, and rivers
AC/DC Solar Pumps Versatile compatibility with solar inverters/controllers
3 HP, 5 HP, 7.5 HP, and 10 HP variants in stock

Applications:

Agricultural irrigation (drip & sprinkler)
Drinking water supply in rural areas
Livestock watering
Government solar pump subsidy schemes
Water lifting from borewells and wells

Why Choose T Square Motor?

Quality-assured solar pump solutions
Competitive pricing and ready stock
Expert guidance on solar system sizing
PAN India delivery and after-sales support

Go green and power your water needs with the sun.
Contact T Square Motor for high-performance Solar Pumps at the best price.

Advanced Digital LCD Controller

The controller is equipped with a user-friendly digital LCD display, allowing you to monitor system status and control settings easily with intuitive keys. Important safety features such as soft start, fault alarms, overload, and voltage protections safeguard your pump, extending its service life and ensuring trouble-free operation.

Versatile Solar Pump Compatibility

Designed to integrate seamlessly with both submersible and surface DC pumps, this system supports a variety of water needs. Its compatibility with polycrystalline and monocrystalline panels (500-700W recommended) ensures flexible power sourcing and reliable operation in diverse environments and weather conditions.

Efficient & Scalable Water Delivery

Delivering up to 10,000 liters per day at a maximum flow rate of 100 LPM and a head of up to 50 meters, this controller is suitable for agricultural, livestock, and pond applications. The modular design allows for future system expansion to higher HP ratings as your water requirements grow.

FAQ's of SOLAR DC MOTOR PUMP CONTROLLER -1 HP:

Q: How does the Digital LCD display controller help in operating the solar DC motor pump?

A: The Digital LCD controller provides real-time information, such as operating status, error warnings, and voltage levels. Its control keys enable you to start, stop, or switch between auto and manual pump modes, making it easy to manage performance and diagnose issues.

Q: What are the recommended solar panel specifications for this 1 HP pump controller?

A: For optimal performance, use poly or monocrystalline solar panels with a combined capacity of 500-700W. The system accepts 30V-100V DC input and works best with 24-36 solar cells, ensuring reliable daily operation for the 1 HP pump.

Q: When should I use the overload and voltage protection features?

A: The controller automatically engages overload, under-voltage, and over-voltage protection when system thresholds are exceeded, preventing equipment damage. You don't need to activate these features manually; they are built-in for seamless, worry-free operation.

Q: Where is this solar pump controller best installed?

A: The weatherproof IP65 enclosure allows for both indoor and outdoor mounting. Wall or surface mounting options are included, making it suitable for installation near wells, water tanks, farm fields, or remote water sources.

Q: What is the process for expanding the system to a higher HP rating?

A: To upgrade your system, replace both the controller and pump with models rated for a higher HP. Ensure that your solar array provides sufficient power for the new configuration. Consult your supplier for compatible upgrade options.

Q: How is the pump protected from dry run or tank overflow situations?

A: The controller supports float switch integration, allowing automatic shutoff when the water source is too low or the tank is full. This prevents pump damage from running dry and conserves water resources.

Q: What are the main benefits of using this solar DC pump solution?

A: This system offers high energy efficiency, straightforward installation, low maintenance thanks to stainless steel and rust-proof components, and reliable operation in off-grid or remote locations. Features like auto/manual modes, MPPT, and comprehensive protection ensure long-term performance and user convenience.
