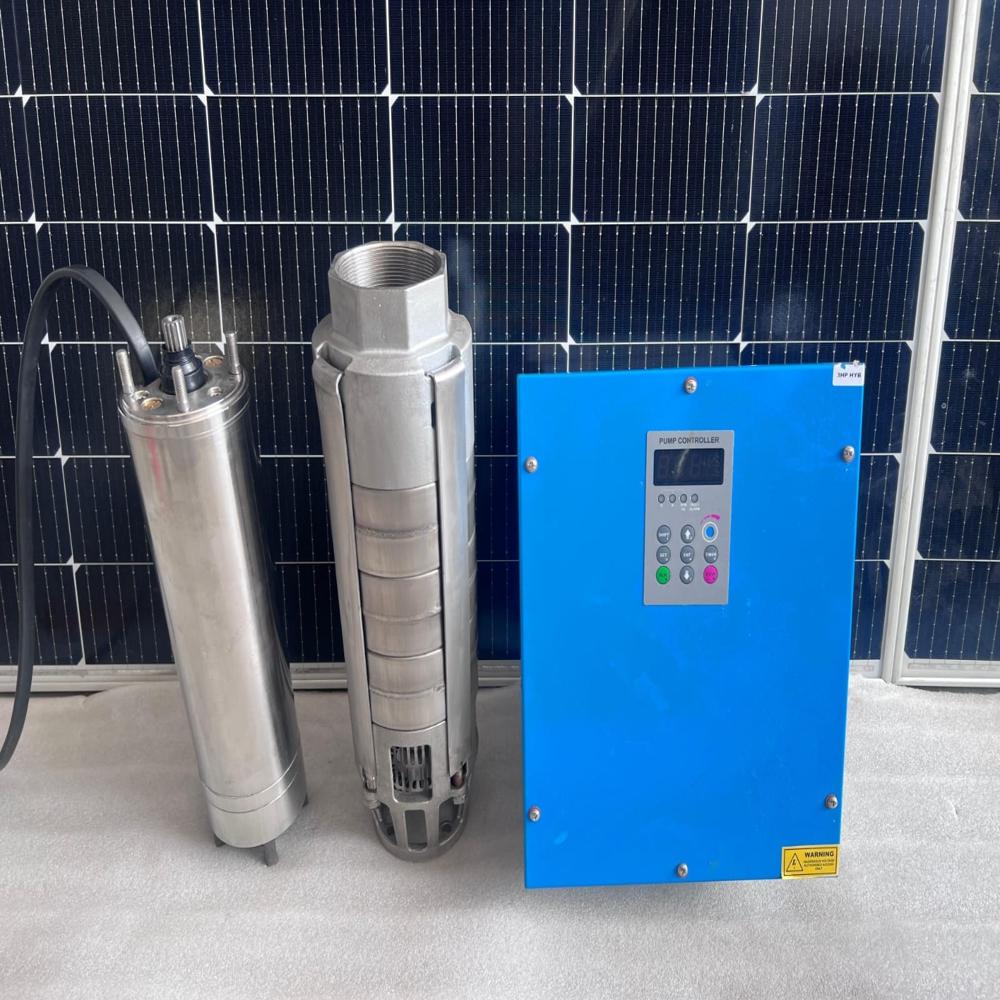

solar submersible pump set 2 hp

solar submersible pump set 2 hp Specification

Efficiency
Above 85% (Pump Motor)

Input Voltage
DC input from solar panel array (200-350V DC range supported)

Features
Eco-Friendly Operation, Low Maintenance, Overload and Dry Run Protection, Digital Controller With Display, Rust Proof, Corrosion Resistant

Maintenance Type
Low Maintenance, Periodic Cleaning Recommended

Product Type
Solar Submersible Pump Set

Material
Stainless Steel, High-Grade Alloy, Polycarbonate (Control Box)

Number of Cells
Monocrystalline/Polycrystalline (Individual Panel Configuration Varies)

Power
2 HP

Operating Temperature
-10C to 50C

Max Voltage
350V DC (input from solar panels)

Max System Voltage
380V DC

Output Voltage
230V AC

Cable Length
20 meters (customizable)

Switch Mode
Automatic and Manual Switch Modes

Size
Standard Borewell Compatible (4-inch to 6-inch options)

Dimension (L*W*H)
Pump - 100cm x 12cm x 12cm, Controller - 35cm x 30cm x 12cm

Color
Silver (Pump), Blue (Controller), Black (Cabling)

Weight
Pump - 18 kg, Controller - 5 kg

Type Of Technology
Photovoltaic Solar Panel Driven Submersible Pump

Installation Type
Vertical Submersion in Borewell/Well

Pump Type
Centrifugal Multi-Stage Submersible Pump

Panel Mounting Type
Ground or Rooftop Structure Supported

Motor Type
Brushless DC Motor

Maximum Head
Up to 90 meters

Flow Rate
Up to 50 LPM (Liters per Minute)

Ingress Protection
IP68 Rated for Pump, IP55 for Controller

Starting Method
Soft Start Technology

Controller Features
LCD Digital Display, Programmable Operation, Auto Start/Stop, Protection Alarms

Pipe Outlet Size
1.5 inch BSP (customizable)

Water Output/Discharge
Up to 20000 liters per day (depending on head and sunlight)

Solar Panel Compatibility
Compatible with both Poly and Mono solar modules

Safety Features
Over Voltage, Under Voltage, Over Current, Dry Run and Over Temperature Protection

solar submersible pump set 2 hp About

A 2HP Solar Pump is a water pumping system powered by solar energy, where the motor and pump are housed in a single compact unit. It is specifically designed for lifting water from shallow sources such as open wells, ponds, tanks, or small canals. Efficient and eco-friendly, it is well-suited for irrigation, livestock watering, and small community water supplyespecially in remote, off-grid locations.

Advanced Solar-Powered Water Delivery

Harness renewable solar energy to power your water supply needs. This 2 HP submersible pump operates efficiently using sunlight, compatible with a range of solar panels, ensuring uninterrupted performance in remote or off-grid locations. Equipped with robust protection features, it offers reliable, eco-friendly water delivery for irrigation, livestock, and drinking purposes.

Intelligent Digital Control & Safety

Optimize performance with the included digital controller featuring an LCD display, programmable operation, and automatic start/stop functionality. Advanced alarms and safety cutoffs protect against dry run, over-voltage, over-current, and overheating, reducing risk and maintenance costs while maximizing pump efficiency.

FAQ's of solar submersible pump set 2 hp:

Q: How is the solar submersible pump set 2 HP installed and where is it suitable for use?

A: This pump is installed vertically in borewells or wells, compatible with both 4-inch and 6-inch diameters. It's ideal for irrigation on agricultural farms, livestock watering, drinking water supply, and delivering water to remote locations with limited grid access.

Q: What type of solar panels are compatible with this pump system?

A: The pump system is compatible with both monocrystalline and polycrystalline solar modules. It supports a DC input voltage from 200 V to 350 V, allowing flexible panel configurations based on available sunlight and water requirements.

Q: When does the automatic start/stop feature activate, and how does it benefit users?

A: The auto start/stop function is controlled by the digital controller and is triggered by programmable operating conditions like sunlight availability or water level. This helps conserve energy, extends pump life, and ensures hassle-free, unattended operation.

Q: What process does the digital controller use to safeguard the pump?

A: The LCD digital controller constantly monitors system parameters. It automatically shuts off the pump during over-voltage, under-voltage, over-current, dry run, or over-temperature conditions, providing immediate protection and alerting users with alarm indicators.

Q: How is maintenance performed and what makes this pump low-maintenance?

A: Routine maintenance involves periodic cleaning of the pump and solar panels to ensure optimal performance. Thanks to its brushless DC motor and corrosion-resistant materials, major servicing needs are minimized, making upkeep straightforward and cost-effective.

Q: What is the maximum water output and under what conditions can it be achieved?

A: The system can deliver up to 20,000 liters per day, with a maximum flow rate of 50 liters per minute. Actual output depends on the well's depth (up to 90 meters), sunlight intensity, and solar array configuration.

Q: What are the main benefits of using a solar-powered submersible pump over a traditional electric pump?

A: Solar-powered pumps are eco-friendly and offer significant savings on electricity bills. Their compatibility with renewable energy makes them ideal for locations without reliable grid power. Additionally, integrated protections ensure safe, consistent operation while reducing maintenance and environmental impact.
