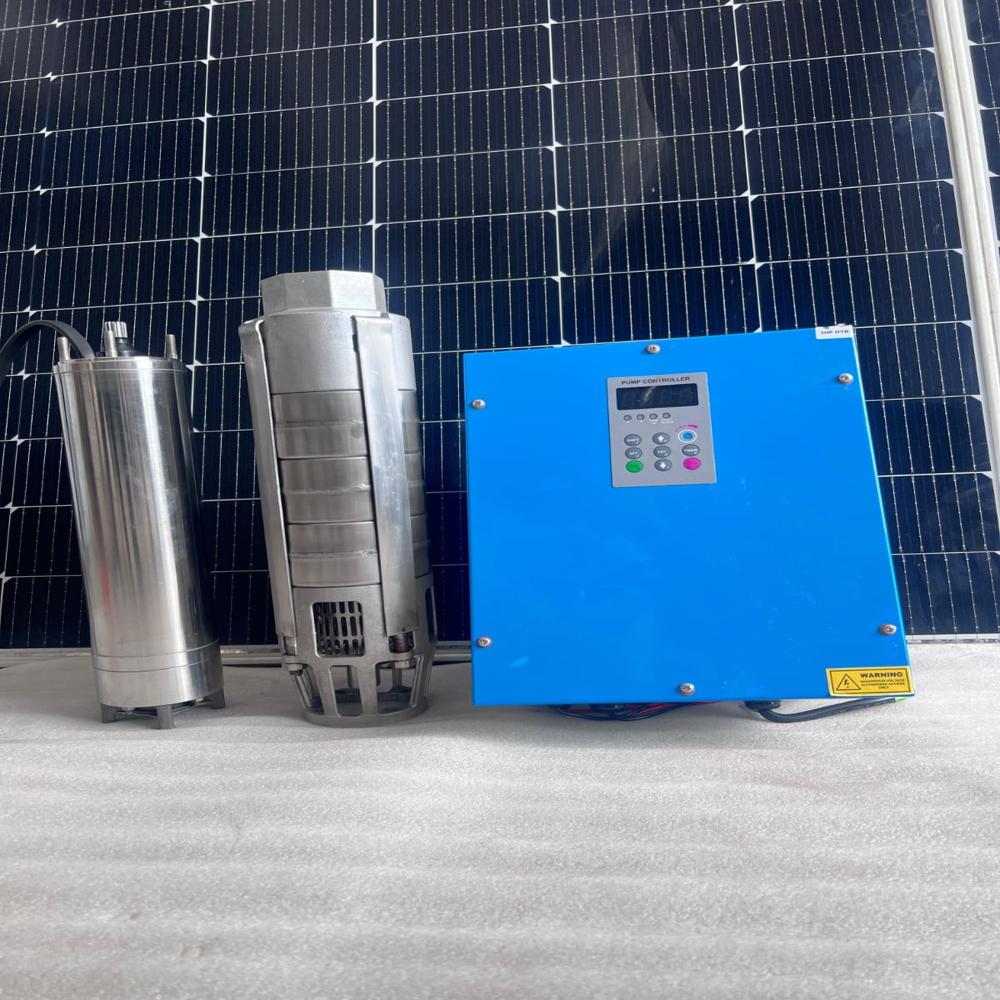

solar submersible pump set 3 hp

solar submersible pump set 3 hp Specification

Maintenance Type
Low/Minimal required

Efficiency
>80% (motor efficiency)

Input Voltage
DC input from Solar Panel Array, 350-460V DC

Features
Corrosion-resistant, Maintenance-free, Inbuilt protection features (dry run, over/under voltage, overload), MPPT controller

Product Type
Solar Submersible Pump Set

Material
Stainless Steel Pump, Metal Controller Box, Polycrystalline/Monocrystalline Solar Panels

Number of Cells
Varies (depends on panel configuration, typically 72 cells/panel)

Power
3 HP

Operating Temperature
0C to 60C

Max Voltage
460V DC (input from solar array)

Max System Voltage
1000V DC

Output Voltage
380V AC (three phase), compatible with solar inverter

Cable Length
30 meters (customizable as required)

Switch Mode
Automatic/Manual

Size
Standard - Suitable for 4 or 6 bore well

Dimension (L*W*H)
Controller Box Approx. 340mm x 320mm x 180mm | Pump Approx. 900mm x 100mm (varies by model)

Color
Silver (Pump), Blue (Controller)

Weight
Pump 18-22 kg; Controller 6 kg (approx.)

Type Of Technology
Photovoltaic & Brushless DC motor

Installation Type
Submersible

Maximum Head
Up to 110m (varies with pump model)

Flow Rate
Up to 18,000 LPH (litres/hour), varies by head

Noise Level
<60 dB (submerged operation)

Controller Type
Digital MPPT (Maximum Power Point Tracking)

Pump Discharge Outlet Size
1.5 inch or 2 inch (depends on selected model)

Protection
Overload, Over/Under Voltage, Dry Run, Reverse Polarity

Start Method
Soft Start via Controller

Pump Stage
Multistage - High discharge at various heads

Control Panel Display
Digital - Operation status, fault, current, voltage

Panel Mount Structure
Hot Dip Galvanized Iron (HDGI) or Aluminum (customizable)

Panel Power Required
3500W (suggested for 3HP pump)

Motor Type
Oil-filled, Brushless DC/AC

Panel Configuration
Series connection as per voltage requirement

solar submersible pump set 3 hp About

A 3HP Solar Pump is a water pumping system powered by solar energy, where the motor and pump are housed in a single compact unit. It is specifically designed for lifting water from shallow sources such as open wells, ponds, tanks, or small canals. Efficient and eco-friendly, it is well-suited for irrigation, livestock watering, and small community water supplyespecially in remote, off-grid locations.

Advanced MPPT Digital Controller

The pump's Digital MPPT Controller tracks the maximum power point from the solar panels, extracting the highest possible efficiency in various sunlight conditions. Real-time digital display enables monitoring of operation status, current, voltage, and faults, easing maintenance and ensuring user awareness of system health.

High Performance and Durability

Designed for reliability, the multistage stainless steel pump delivers high discharge rates at multiple heads, with a noise level below 60 dB during operation. With corrosion-resistant construction and a brushless DC/AC oil-filled motor, the system requires minimal maintenance and promises long operational life.

Flexible Installation and Application

Compatible with bore wells of 4 or 6 inches, the set comes with a customizable cable length and can be mounted with galvanized or aluminum structures. It's tailored for various applications, from irrigation to community water supply, and functions efficiently within a wide temperature and voltage range.

FAQ's of solar submersible pump set 3 hp:

Q: How does the MPPT controller enhance the efficiency of the solar submersible pump?

A: The digital MPPT (Maximum Power Point Tracking) controller optimizes the power extracted from solar panels by continuously adjusting its operation to match the best voltage and current. This maximizes efficiency, especially during varying sunlight conditions, ensuring consistent pump performance throughout the day.

Q: What types of applications is this 3 HP solar pump suitable for?

A: This pump is ideal for agricultural irrigation, potable water supply, livestock watering, garden irrigation, and community water supply. Its high discharge capacity and ability to operate at various heads make it versatile for numerous water delivery needs in rural and off-grid locations.

Q: When should I use the manual or automatic switch mode?

A: Automatic mode is suggested for regular, unattended operation, as the system will manage water delivery based on pre-set parameters and protections. Manual mode can be used for customized control during maintenance or specific operating conditions when direct intervention is needed.

Q: Where can the solar submersible pump set be installed?

A: It is designed for installation in 4-inch or 6-inch bore wells and can be deployed in fields, farms, gardens, remote villages, or community water projects-essentially anywhere there is a need for reliable water lifting in off-grid or solar-powered environments.

Q: What is the installation process for the solar pump system?

A: Installation involves mounting the solar panels (typically 3500W total), connecting them in series to achieve the required voltage, and placing the pump in the bore well. The controller is then connected between the panels and pump, with cable lengths customizable to the site. The mount structure can be galvanized iron or aluminum, as per site requirements.

Q: What are the main benefits of using a solar submersible pump with a digital MPPT controller?

A: Key benefits include high energy efficiency, maintenance-free operation, long service life due to corrosion resistance, and robust protection against electrical and operational faults. The MPPT controller ensures optimal power usage, reducing running costs and environmental impact.
