2 HP SOLAR WATER PUMP SET

2 HP SOLAR WATER PUMP SET Specification

Features
Rust-Proof, Energy-Efficient, Controller with LCD, Auto start-stop, Dry Run Protection, Over-voltage and Overload Protection

Input Voltage
120V-300V DC/AC (wide range for controller)

Maintenance Type
Low Maintenance; Periodic Inspection Recommended

Efficiency
Typically 85% motor, 17-21% solar panel (panel configuration-dependent)

Product Type
Solar Water Pump Set

Material
Stainless Steel and Metal Components

Number of Cells
Typically 72 or 96 solar cell configuration per solar panel (panel specification-dependent)

Power
2 HP

Operating Temperature
-10C to 60C

Max Voltage
Controller Max: 440V

Max System Voltage
1000V DC (panel circuit)

Output Voltage
220V (AC) or 48V (DC supported, configuration-dependent)

Cable Length
Customizable as per requirement

Switch Mode
Automatic/Manual mode selectable

Size
Standard for 2 HP pump system (refer to dimension)

Dimension (L*W*H)
Controller: approx. 400mm x 350mm x 180mm; Pump: approx. 100mm diameter x 600mm length

Color
Metallic Silver (pump), Blue (controller)

Weight
Controller: ~8kg, Pump: ~12kg, Panel not included

Application
Irrigation, Rural Water Supply, Livestock, and Industrial Use

Type Of Technology
Photovoltaic (PV) & Brushless Motor Drive

Installation Type
Surface/Submersible Setting Possible

Recommended Water Source
Borewell, Open Well, Pond or Reservoir

Controller Type
MPPT (Maximum Power Point Tracking)

Maximum Head
Up to 80 meters (pump variant-specific)

Environment Protection Level
IP54 Controller / IP68 Pump Motor

Pump Type
Submersible Centrifugal Pump

Protections
Dry run, Overload, Overvoltage, Short Circuit

Solar Panel Requirement
Approx. 1800-2200W (Not included, recommended 4-6 panels, 330-550W each)

Cooling Type
Water cooled (pump) and air cooled (controller)

Maximum Flow Rate
Up to 15000 liters/hour (site-specific)

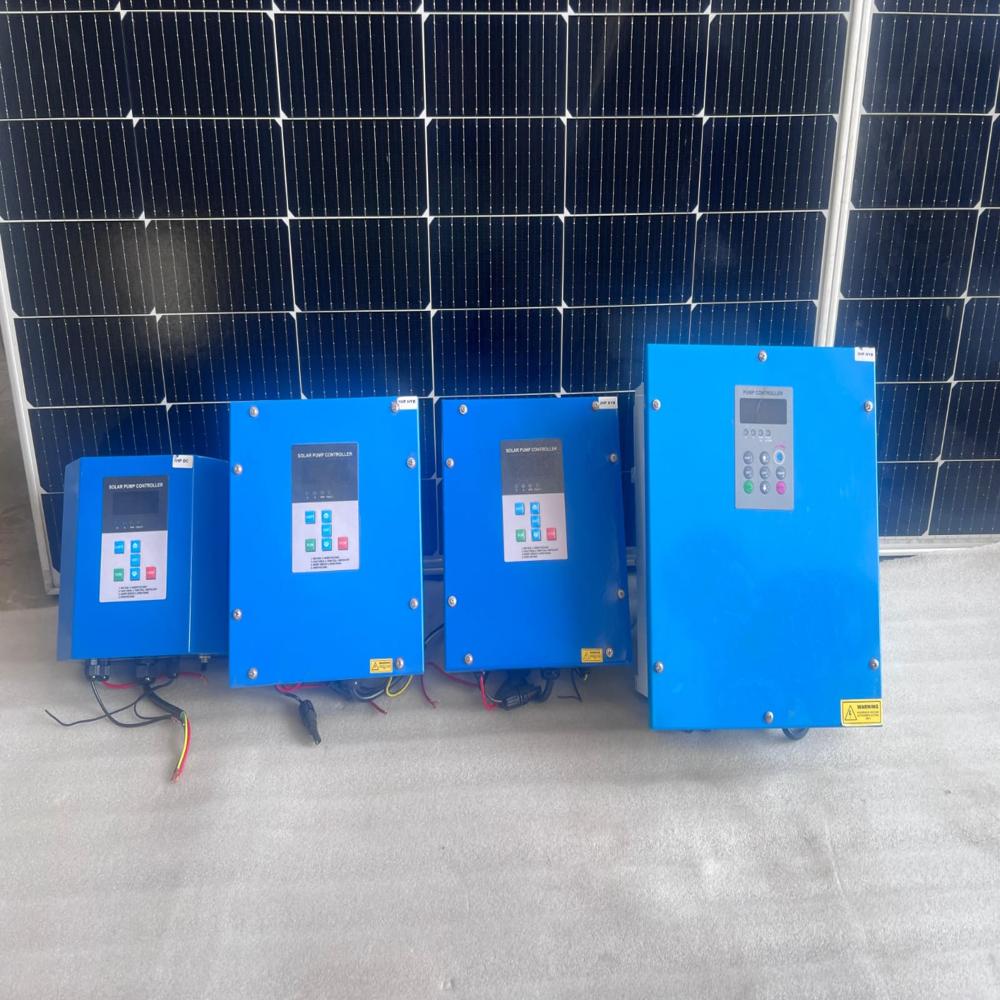

Control Panel Display
Digital LCD with status and parameter Indication

Start-up Voltage
DC Input start-up approx. 120V

2 HP SOLAR WATER PUMP SET About

T Square Motor is a trusted supplier of high-efficiency Solar Pumps, designed to meet the growing demand for sustainable and cost-effective water pumping in agriculture, domestic, and industrial applications. Our solar pumps run directly on solar energy, reducing electricity costs and enabling off-grid operation in rural areas.

Key Features:

Available in AC and DC pump variants
Power range: 0.5 HP to 10 HP
Submersible and surface pump options
High-efficiency MPPT-based solar controllers for maximum power output
Durable construction with corrosion-resistant stainless steel body
Low maintenance and long service life
Built-in protections: dry run, overload, short circuit, reverse polarity
Optional hybrid operation (solar + grid/diesel)

Product Range:

Submersible Solar Pumps Ideal for deep borewells
Surface Solar Pumps Suitable for open wells, ponds, and rivers
AC/DC Solar Pumps Versatile compatibility with solar inverters/controllers
3 HP, 5 HP, 7.5 HP, and 10 HP variants in stock

Applications:

Agricultural irrigation (drip & sprinkler)
Drinking water supply in rural areas
Livestock watering
Government solar pump subsidy schemes
Water lifting from borewells and wells

Why Choose T Square Motor?

Quality-assured solar pump solutions
Competitive pricing and ready stock
Expert guidance on solar system sizing
PAN India delivery and after-sales support

Go green and power your water needs with the sun.
Contact T Square Motor for high-performance Solar Pumps at the best price.

High-Efficiency Solar Pumping Solution

Utilizing state-of-the-art MPPT technology and a robust submersible centrifugal pump design, this 2 HP solar water pump maximizes energy capture and operational performance. With efficiency rates of up to 85% at the motor and compatibility with high-efficiency solar panels (17-21%), this system offers unmatched reliability in water transfer applications.

Versatile & Safe Operation

The intelligent digital controller ensures easy monitoring and adjustment, displaying real-time status and parameters through an LCD panel. Integrated protections-including dry run, overvoltage, overload, and short circuit-promote long-term durability. Automatic or manual start-stop functions make it adaptable for varied operational preferences and water demands.

Rugged Construction & Minimal Maintenance

Engineered with quality stainless steel and durable metal components, the solar pump withstands harsh conditions, corrosion, and temperature extremes (-10C to 60C). With an IP68-rated pump and IP54 controller enclosure, the system is ideal for both submerged and surface installations, demanding only periodic inspections for optimal performance.

FAQ's of 2 HP SOLAR WATER PUMP SET:

Q: How is the 2 HP solar water pump set installed and can it operate in both borewells and open wells?

A: Installation is flexible; the pump can be set either submerged in borewells or surface-mounted in open wells, ponds, or reservoirs. Installation typically requires aligning panels (not included), mounting the controller (in a shaded/protected area), and connecting the power cables as per the provided diagram. Consult a professional installer for optimal pump placement and secure operation.

Q: What is the process for starting and controlling the pump system, and how does the MPPT controller benefit operation?

A: The controller features both automatic and manual start/stop options, selectable via its LCD interface. The MPPT (Maximum Power Point Tracking) controller optimizes solar energy usage, ensuring the pump receives the precise voltage and current needed for varying sunlight and load conditions, which maximizes efficiency and reduces energy losses.

Q: Which protections are included in this pump set, and how do they enhance safety and longevity?

A: This system offers comprehensive protections: dry run (prevents damage when water is insufficient), overload, overvoltage, and short-circuit safety measures are integrated. These features help protect the pump and electronics from operational risks, significantly extending the service life and reliability of the entire unit.

Q: What solar panels are recommended, and can I use existing panels with the system?

A: This pump requires approximately 1800-2200W of solar input, typically achieved with 4-6 PV panels rated between 330W and 550W each, depending on your site. Both 72 or 96 cell panels can be used, provided the system voltage remains within 1000V DC. Existing panels are compatible if they meet these specifications.

Q: When is periodic maintenance needed, and what does it involve for this low-maintenance pump set?

A: Periodic maintenance is recommended rather than frequent, intensive servicing. Tasks include routine inspections, checking electrical connections, cleaning the controller's ventilation, and ensuring the pump intake is free from debris. These simple steps ensure consistent performance and protect against environmental wear.

Q: Where can the 2 HP solar water pump be effectively used, and what are its primary applications?

A: This pump set is highly versatile, suited for irrigation in agriculture, rural water supply, livestock watering, and various industrial applications. Its rust-proof construction and wide temperature tolerance allow for installation in fields, remote villages, farms, and industrial complexes relying on solar-powered water transfer.

Q: What are the main benefits of choosing this 2 HP solar water pump set over traditional electric or diesel pumps?

A: Key benefits include remarkable energy savings, low operating costs, minimal maintenance, robust protections, and eco-friendly operation. The system's reliance on solar energy reduces utility bills and carbon emissions, while its sturdy, rust-resistant build and intelligent control system provide reliable and safe water supply for years to come.
