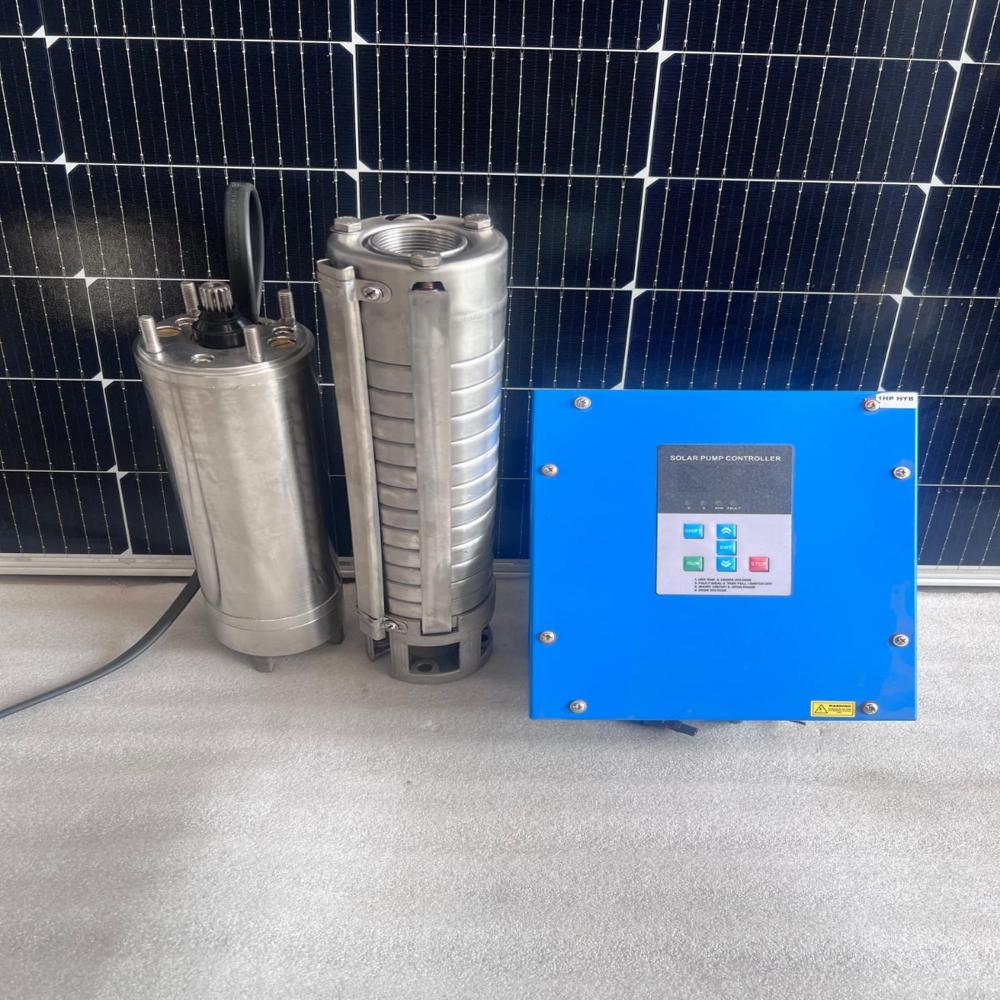

3 HP SOLAR WATER PUMP SET

3 HP SOLAR WATER PUMP SET Specification

Efficiency
Up to 85% (pump); Controller MPPT efficiency: 99.5%

Maintenance Type
Low Maintenance

Features
Rustproof, Energy Efficient, Digital Controller, Dry Run Protection, Overload Protection, Low Maintenance

Input Voltage
DC 380-440V (from solar); AC 220V supported

Product Type
Solar Water Pump Set

Material
Stainless Steel (Pump), High-quality ABS/Metal (Controller), Monocrystalline Silicon (Panel)

Number of Cells
72 cells (solar panel estimation)

Power
3 HP

Operating Temperature
-10C to 60C

Max Voltage
380V DC (solar input max)

Max System Voltage
1000V DC (panel max)

Output Voltage
220V AC (Controller)

Cable Length
10-30 meters (customizable)

Switch Mode
Automatic/Manual via controller

Size
Pump Length Approx. 600mm, Controller Box 300mm x 300mm

Dimension (L*W*H)
Pump: 60 x 10 x 10 cm, Controller: 30 x 30 x 15 cm

Color
Silver (Pump), Blue (Controller)

Weight
Pump: 15 kg, Controller: 6 kg

Application
Irrigation, Agriculture, Livestock watering, Rural water supply

Type Of Technology
Photovoltaic (PV) with MPPT Control

Installation Type
Surface or Submersible

Water Output
From 2 inch discharge outlet

Noise Level
<60 dB (Pump under water)

Panel Requirement
Minimum 3 kW Solar Panel Array Recommended

Protection Level
IP65 (Controller), IP68 (Pump)

Mounting Type
Vertical

Power Source
Solar panel primary; grid backup optional

Remote Monitoring
Optional (with GSM/WiFi module)

Max Head
120 meters

Pump Starting Method
Soft Start

Motor Type
Brushless DC Motor

Compliance
IEC/IS certified pump and electronics

Cooling Method
Water Cooled (Pump), Air Cooled (Controller)

Flow Rate
Up to 50,000 Litres/Day (depending on head and sunlight)

Pump Type
Submersible Centrifugal

Controller Type
Digital Solar Pump Controller with LCD Display

3 HP SOLAR WATER PUMP SET About

T Square Motor is a trusted supplier of high-efficiency Solar Pumps, designed to meet the growing demand for sustainable and cost-effective water pumping in agriculture, domestic, and industrial applications. Our solar pumps run directly on solar energy, reducing electricity costs and enabling off-grid operation in rural areas.

Key Features:

Available in AC and DC pump variants
Power range: 0.5 HP to 10 HP
Submersible and surface pump options
High-efficiency MPPT-based solar controllers for maximum power output
Durable construction with corrosion-resistant stainless steel body
Low maintenance and long service life
Built-in protections: dry run, overload, short circuit, reverse polarity
Optional hybrid operation (solar + grid/diesel)

Product Range:

Submersible Solar Pumps Ideal for deep borewells
Surface Solar Pumps Suitable for open wells, ponds, and rivers
AC/DC Solar Pumps Versatile compatibility with solar inverters/controllers
3 HP, 5 HP, 7.5 HP, and 10 HP variants in stock

Applications:

Agricultural irrigation (drip & sprinkler)
Drinking water supply in rural areas
Livestock watering
Government solar pump subsidy schemes
Water lifting from borewells and wells

Why Choose T Square Motor?

Quality-assured solar pump solutions
Competitive pricing and ready stock
Expert guidance on solar system sizing
PAN India delivery and after-sales support

Go green and power your water needs with the sun.
Contact T Square Motor for high-performance Solar Pumps at the best price.

Advanced Digital Solar Pump Control

The state-of-the-art digital controller with LCD display manages and optimizes pump performance with features like MPPT for maximum solar power efficiency, real-time status, soft start, and comprehensive protections. Its air-cooled design ensures reliable operation in a range of climates and remote monitoring capability further enhances system management.

Robust and Efficient Submersible Pump

Crafted from rustproof stainless steel, the submersible centrifugal pump operates quietly below 60 dB and is water-cooled for extended life. With a flow rate up to 50,000 litres per day (subject to sun and head), and a 2-inch discharge outlet, it's built for sizable agricultural or supply applications while requiring minimal maintenance.

Installation Flexibility and Low Maintenance

Designed for surface or submersible mounting, the system includes durable cables (10-30 metres, customizable) and can be set up in various locations. The IP68-rated pump and IP65-rated controller withstand water and dust, making them ideal for demanding rural environments. Monocrystalline solar panels secure efficient energy conversion, supporting low operational costs.

FAQ's of 3 HP SOLAR WATER PUMP SET:

Q: How is the 3 HP Solar Water Pump Set installed and where can it be mounted?

A: The pump set supports both surface and submersible installation options. It can be placed in wells, ponds, or water tanks for agricultural, irrigation, and rural supply uses. Ensure access to a suitable area for the pump, connect the controller, and use the recommended 3 kW solar panel array. Professional installation is recommended for optimal setup.

Q: What is the daily water output and what factors influence it?

A: The system can deliver up to 50,000 litres per day, depending on sunlight availability (panel output) and the total head (height it must lift the water). Optimal placement of solar panels and pump, as well as proper matching of system voltage, are key to maximizing daily water output.

Q: When should I use the grid backup option for the solar water pump?

A: The grid backup is recommended during extended periods of weak sunlight or system maintenance. While the primary power source is solar, connecting to AC 220V ensures continuous operation when solar energy is insufficient, maintaining consistent water supply throughout the year.

Q: How does the pump controller support system protection and efficiency?

A: The digital controller offers soft start, MPPT control (maximizing energy conversion up to 99.5%), and comprehensive safeguards like dry run and overload protection. The LCD display provides real-time monitoring, while certified electronics and efficient cooling systems prolong product lifespan and minimize maintenance.

Q: What are the benefits of using this solar water pump set over traditional pumps?

A: This solar pump set uses clean, renewable solar energy, significantly reducing electricity or diesel costs. With high-efficiency, low-maintenance operation, and advanced protections, it ensures dependable water supply, is environmentally friendly, and is especially effective in remote or grid-limited areas.

Q: How can I monitor and control the water pump remotely?

A: The system offers optional remote monitoring via a GSM or WiFi module, enabling users to check performance, adjust settings, and receive alerts from virtually anywhere. This feature is useful for managing pumps in large or isolated fields.

Q: What maintenance does the 3 HP Solar Water Pump require?

A: The pump is designed for minimal maintenance thanks to its rustproof construction and brushless DC motor. Regular cleaning of the pump intake and periodic checks of the controller, cables, and panels are recommended to ensure peak efficiency and longevity.
