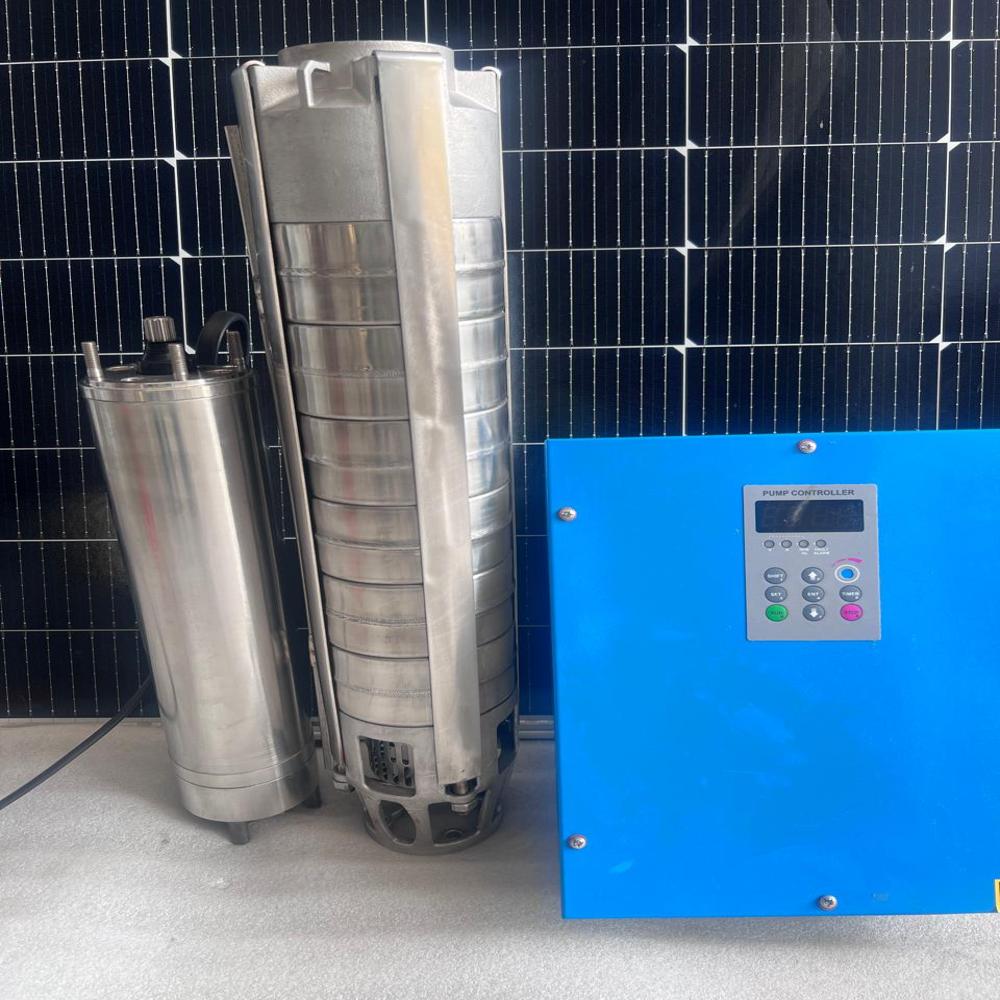

2HP Solar Water Pump

2HP Solar Water Pump Specification

Features
High efficiency, Corrosion resistant, Suitable for off-grid, Automatic controller, Low maintenance

Efficiency
Up to 85% (Motor Efficiency), Solar Panel 18-21%

Input Voltage
360V to 380V DC (Solar Array Input)

Maintenance Type
Low maintenance, Periodic cleaning of panels and inspection of pump

Product Type
Solar Water Pump

Material
Stainless Steel (Pump Body), Polycarbonate/Aluminum (Controller), Silicon (Solar Panel)

Number of Cells
72 Cells (Typical for 2HP Solar Array)

Power
2 HP (Horsepower)

Operating Temperature
0C to 55C

Max Voltage
37-45V (per solar panel module), System designed for 220V AC output

Max System Voltage
1000V DC (Solar Input)

Output Voltage
220V AC (for controller/pump output)

Cable Length
Customizable as per installation requirements

Switch Mode
Automatic/Manual (Controller Supported)

Size
Standard Submersible Pump Size

Dimension (L*W*H)
Pump: 100mm x 100mm x 700mm (approximate), Controller: 300mm x 350mm x 120mm (approximate)

Color
Silver (Pump), Blue (Controller), Black (Solar Panel)

Weight
35 kg (Pump Set) + 7 kg (Controller) (approximate)

Application
Agricultural Irrigation, Drinking Water Supply, Livestock Watering, Rural Water Supply

Type Of Technology
Photovoltaic (PV) Solar + Submersible Pump Motor

Installation Type
Surface or Borewell (Submersible)

Pump Type
Submersible Centrifugal Pump

Inverter Type
Inbuilt Solar Pump Controller (MPPT type)

Mounting Structure Material
Galvanized Iron/Aluminum (for solar panels)

Protection Features
Dry Run Protection, Overload Protection, Reverse Polarity Protection

Water Output Per Day
30,000 to 50,000 liters (average depending on sun and head)

Maximum Head
Up to 60 meters (varies by model/installation)

Automation Grade
Automatic

Motor Type
Brushless DC Motor (BLDC)

Solar Panel Wattage Recommended
1800W to 2200W

Solar Panel Type
Mono/Polycrystalline

Flow Rate
120-150 liters per minute (depending on head)

Pump Controller Display
Digital LCD for real time monitoring

2HP Solar Water Pump About

T Square Motor is a trusted supplier of high-efficiency Solar Pumps, designed to meet the growing demand for sustainable and cost-effective water pumping in agriculture, domestic, and industrial applications. Our solar pumps run directly on solar energy, reducing electricity costs and enabling off-grid operation in rural areas.

Key Features:

Available in AC and DC pump variants
Power range: 0.5 HP to 10 HP
Submersible and surface pump options
High-efficiency MPPT-based solar controllers for maximum power output
Durable construction with corrosion-resistant stainless steel body
Low maintenance and long service life
Built-in protections: dry run, overload, short circuit, reverse polarity
Optional hybrid operation (solar + grid/diesel)

Product Range:

Submersible Solar Pumps Ideal for deep borewells
Surface Solar Pumps Suitable for open wells, ponds, and rivers
AC/DC Solar Pumps Versatile compatibility with solar inverters/controllers
3 HP, 5 HP, 7.5 HP, and 10 HP variants in stock

Applications:

Agricultural irrigation (drip & sprinkler)
Drinking water supply in rural areas
Livestock watering
Government solar pump subsidy schemes
Water lifting from borewells and wells

Why Choose T Square Motor?

Quality-assured solar pump solutions
Competitive pricing and ready stock
Expert guidance on solar system sizing
PAN India delivery and after-sales support

Go green and power your water needs with the sun.
Contact T Square Motor for high-performance Solar Pumps at the best price

Intelligent Performance and Automation

Equipped with a digital LCD controller and MPPT-based technology, this solar pump system automatically optimizes operation based on solar input and load. With integrated protections such as dry run, overload, and reverse polarity, you can trust in reliable, hands-free performance. Automatic/manual switching enhances usability, while real-time data empowers precise monitoring and adjustments.

Designed for Diverse Water Supply Needs

Suitable for borewell or surface installation, the submersible centrifugal pump delivers between 30,000 and 50,000 liters per day-ideal for agricultural, livestock, and rural water supply. Its corrosion-resistant stainless-steel body and galvanized/aluminum structures endure harsh outdoor environments, assuring durability and long service life even in off-grid settings.

Efficient and Sustainable Water Solution

With a motor efficiency of up to 85% and recommended solar panel wattage of 1800W-2200W, this solar water pump maximizes energy harvested from the sun. Maintenance requirements are minimal, limited to routine solar panel cleaning and periodic system inspection, providing a sustainable, cost-effective answer to water pumping challenges.

FAQ's of 2HP Solar Water Pump:

Q: How does the automatic controller of the 2HP solar water pump operate?

A: The system features an inbuilt MPPT pump controller with a digital LCD that continuously monitors and adjusts the pump's operation for optimal performance. It can automatically start, stop, and shift between manual and automatic modes according to water demand and sunlight conditions.

Q: What maintenance is required for the solar water pump system?

A: The system is designed for low maintenance. The primary tasks involve periodic cleaning of solar panels to maintain efficiency and regular inspection of the pump and controller to ensure optimal operation. The use of corrosion-resistant materials minimizes other routine care.

Q: When is this solar pump most effective for water output?

A: Maximum water output is achieved during periods of strong, consistent sunlight, typically between late morning and early afternoon. Performance may vary slightly with seasonal changes, weather conditions, and the installation's specific head and layout.

Q: Where can this solar water pump be installed?

A: This pump supports flexible installation for either surface use or submersion in borewells. Its robust construction allows it to be deployed in agricultural fields, remote livestock areas, or rural communities requiring reliable water supply.

Q: What safety features are included with this solar pump system?

A: Key safety protections are built into the controller, including dry run prevention, overload protection, and reverse polarity safety. These ensure the pump operates within safe parameters, extending its service life and reliability.

Q: How does the system benefit off-grid or rural environments?

A: By harnessing photovoltaic solar technology and not relying on grid electricity, this pump system offers a sustainable, independent solution for water needs in areas where power supply may be inconsistent or unavailable. Its automatic controls and efficient design ensure steady operation with minimal oversight.

Q: What is the process for customizing the system for different installations?

A: Cable lengths, mounting structures, and controller settings can be tailored during setup to match specific installation requirements. This ensures the pump efficiently delivers water according to site-specific head, flow, and daily usage needs.
