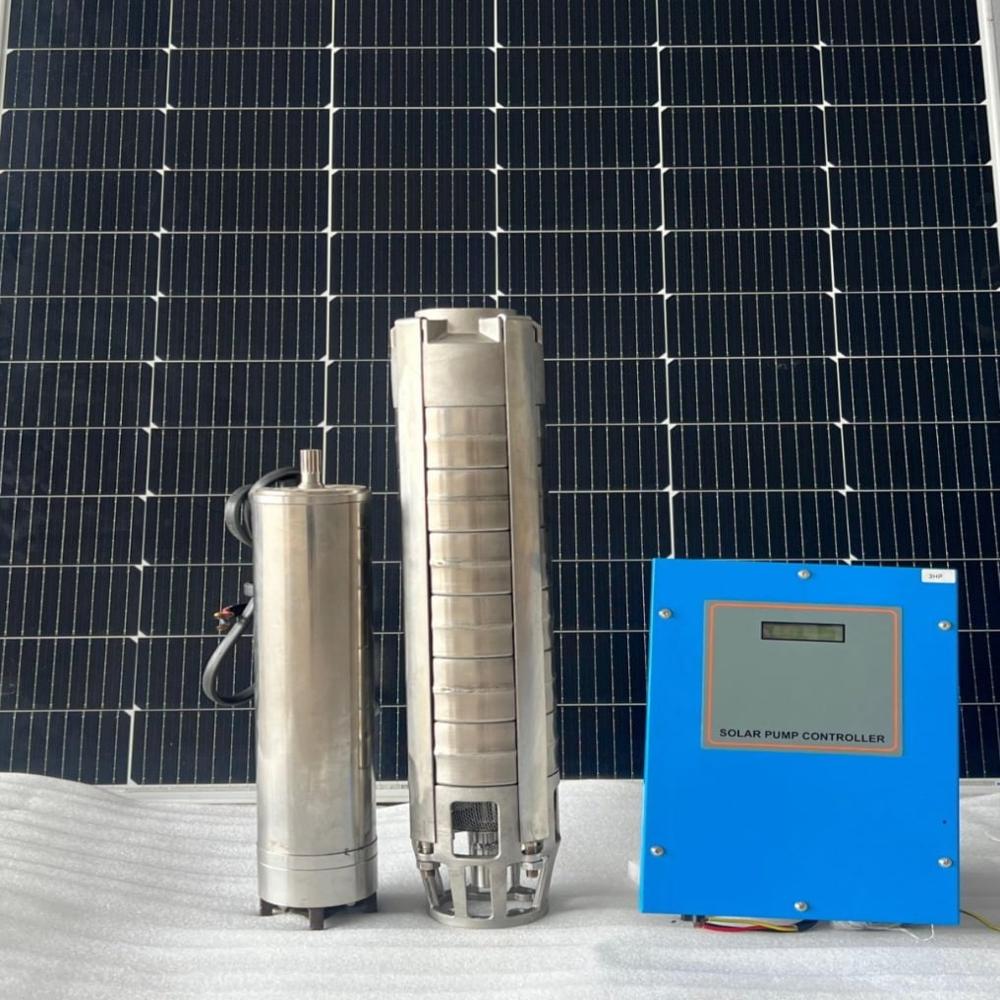

5 HP SOLAR WATER PUMP SET

5 HP SOLAR WATER PUMP SET Specification

Maintenance Type
Low Maintenance

Efficiency
15.5% to 19% (Solar Panel), 70% to 80% (Pump Conversion)

Input Voltage
380V-450V DC (Solar Array Input) Volt (V)

Features
Eco-friendly, Low Maintenance, High Durability, Overload Protection

Product Type
Other

Material
Stainless Steel and Metal Components

Number of Cells
72 cells/module (Solar Panel)

Power
5 HP Horsepower (HP)

Operating Temperature
-10C to 55C Celsius (oC)

Max Voltage
450V DC (Solar Input) Volt (V)

Max System Voltage
1000V DC Volt (V)

Output Voltage
380V-440V AC (Three Phase) Volt (V)

Cable Length
Customizable as per installation Yard

Switch Mode
Other

Size
Standard (varies by submersible configuration)

Dimension (L*W*H)
Pump: 900mm x 130mm x 130mm (approx), Panel: as per wattage required Millimeter (mm)

Color
Silver (Pump), Blue (Controller), Black/Blue (Solar Panel)

Weight
60-80 kg (complete set approx.) Kilograms (kg)

Warranty
1 year

Application
Industrial

Type Of Technology
Other

Installation Type
Other

Maximum Head
Up to 180 meters (varies with model)

Water Flow Rate
Up to 50000 LPH (Litres Per Hour)

Controller Type
Intelligent MPPT Controller

Start Method
Soft Start/Direct Start

Tank Full System
Automatic Shut-off supported

Ambient Humidity
0 to 95% RH, Non-condensing

Panel Type
Monocrystalline Silicon Solar Panel

Display
Digital Display on Controller

Compatibility
Supports on-grid/off-grid operation

Life Expectancy
> 25 years (Solar Panel), > 6 years (Pump)

Pump Type
Submersible/Surface

Cooling Method
Water Cooled (Pump), Air Cooled (Controller)

Protection Class
IP68 (Pump), IP65 (Controller)

5 HP SOLAR WATER PUMP SET Trade Information

Minimum Order Quantity
5 Sets

Delivery Time
5 Days

5 HP SOLAR WATER PUMP SET About

T Square Motor is a trusted supplier of high-efficiency Solar Pumps, designed to meet the growing demand for sustainable and cost-effective water pumping in agriculture, domestic, and industrial applications. Our solar pumps run directly on solar energy, reducing electricity costs and enabling off-grid operation in rural areas.

Key Features:

Available in AC and DC pump variants
Power range: 0.5 HP to 10 HP
Submersible and surface pump options
High-efficiency MPPT-based solar controllers for maximum power output
Durable construction with corrosion-resistant stainless steel body
Low maintenance and long service life
Built-in protections: dry run, overload, short circuit, reverse polarity
Optional hybrid operation (solar + grid/diesel)

Product Range:

Submersible Solar Pumps Ideal for deep borewells
Surface Solar Pumps Suitable for open wells, ponds, and rivers
AC/DC Solar Pumps Versatile compatibility with solar inverters/controllers
3 HP, 5 HP, 7.5 HP, and 10 HP variants in stock

Applications:

Agricultural irrigation (drip & sprinkler)
Drinking water supply in rural areas
Livestock watering
Government solar pump subsidy schemes
Water lifting from borewells and wells

Why Choose T Square Motor?

Quality-assured solar pump solutions
Competitive pricing and ready stock
Expert guidance on solar system sizing
PAN India delivery and after-sales support

Go green and power your water needs with the sun.
Contact T Square Motor for high-performance Solar Pumps at the best price.

Advanced Solar Pumping Technology

This solar water pump set leverages advanced photovoltaic technology and an intelligent MPPT controller to optimize power conversion. With efficiencies up to 19% from the solar panels and up to 80% from the pump itself, the system minimizes electrical losses while maximizing water delivery throughout the day.

Reliable and User-Friendly Operation

Engineered for both on-grid and off-grid compatibility, the pump set includes automatic soft or direct start, overload protection, and an automatic tank full shut-off feature. The integrated digital display provides real-time system performance information, helping users monitor and manage water supply effectively.

Long-Lasting and Low Maintenance Design

Built from stainless steel and robust metal components, the pump ensures resistance to corrosion and long operational life, while the solar panels boast durability of over 25 years. Minimal intervention is needed, making this an ideal choice for remote or rural installations where reliability is crucial.

FAQ's of 5 HP SOLAR WATER PUMP SET:

Q: How is the 5 HP Solar Water Pump Set installed and what mounting options are available?

A: Installation is straightforward and can be customized for either ground or surface mounting, depending on site requirements. The pump is available in both submersible and surface types, allowing flexibility for borewells or open water sources. All cables can be tailored to fit specific installation needs.

Q: What types of water applications is this solar pump set suitable for?

A: This pump set is designed for agricultural irrigation, borewell water extraction, drinking water supply, and general water transfer applications. Its high flow rate and significant head capability make it suitable for a wide range of rural and farm uses.

Q: When does the automatic tank full shut-off system activate and how does it function?

A: The automatic shut-off feature activates when the water storage tank reaches full capacity. The digital controller senses this state and safely powers down the pump, preventing overflow and conserving energy until more water is needed.

Q: Where can the solar water pump set operate effectively?

A: Thanks to its high protection class (IP68 pump, IP65 controller) and broad operating temperature range (-10C to 55C), the pump set performs reliably in diverse climates and weather conditions, from humid tropics to semi-arid zones.

Q: What are the benefits of using a solar-powered pump set compared to a conventional electric pump?

A: Solar-powered pump sets dramatically reduce running costs by utilizing free solar energy, and they offer eco-friendly operation with minimal environmental impact. Additionally, maintenance requirements are low, system lifespan is extended, and the set provides dependable service even in areas without grid access.

Q: How does the MPPT controller improve the system's efficiency?

A: The intelligent MPPT (Maximum Power Point Tracking) controller continuously adjusts power delivery from the solar panels to the pump, ensuring optimal performance regardless of changing sunlight conditions. This maximizes water output and system energy efficiency.

Q: What regular maintenance is required for the solar pump set?

A: Routine maintenance is minimal. Periodic checks involve cleaning the solar panel surfaces of dust or debris and inspecting connections. The pumps and controllers are engineered for long-term, low-maintenance performance, reducing upkeep efforts for users.
