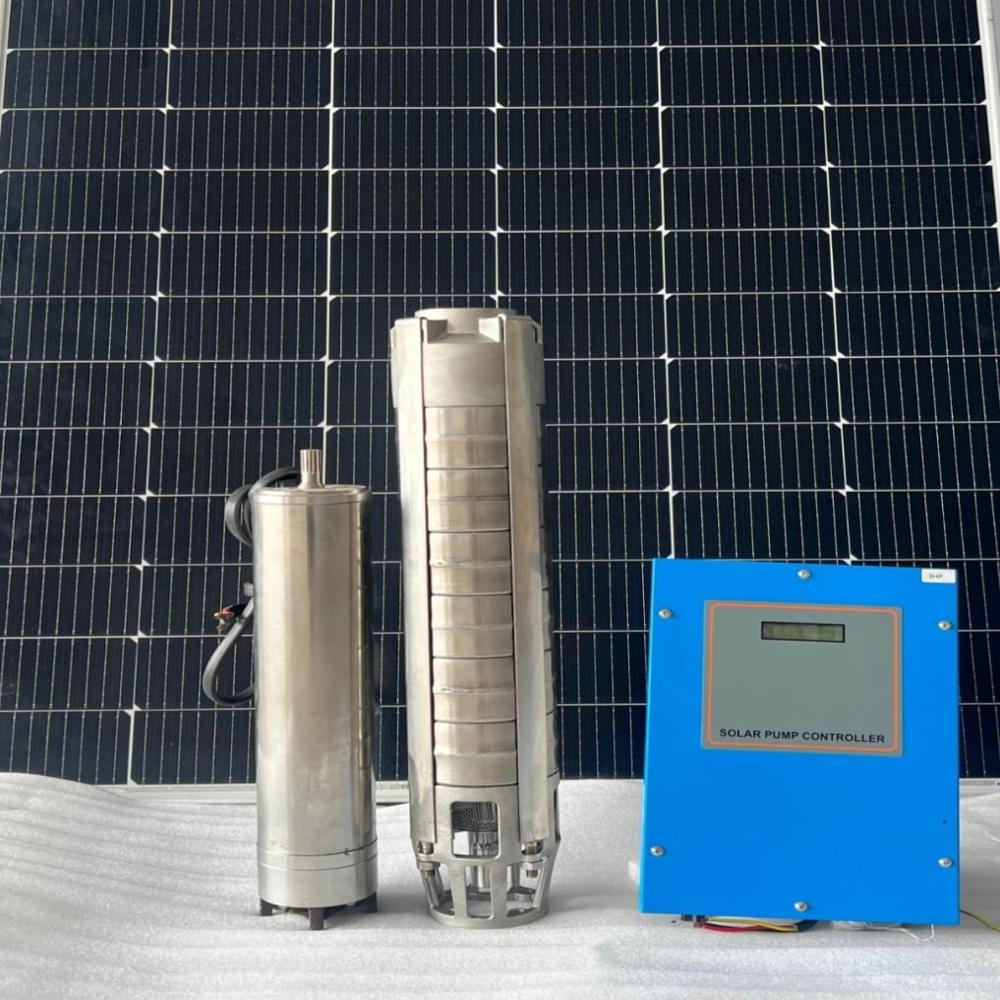

10 HP SOLAR WATER PUMP SET

10 HP SOLAR WATER PUMP SET Specification

Features
Automatic operation, over-voltage/overload/over-temp protection, dry run protection, MPPT controller, corrosion-resistant

Efficiency
Panel: 17-20%, Pump: 85%

Maintenance Type
Low maintenance, periodic cleaning of panels and visual inspection of pump

Input Voltage
380-415V AC (from PV inverter/controller)

Product Type
Solar Water Pump Set

Material
Stainless Steel (Pump), robust metallic and high-grade plastic components

Number of Cells
Varies (typically 72 cells per panel, multiple panels used)

Power
10 HP (Horsepower)

Operating Temperature
-10C to 60C

Max Voltage
750 V (system design dependent)

Max System Voltage
1000 V DC (PV array maximum)

Output Voltage
380-415V AC (3 phase)

Cable Length
30 meters (customizable as per installation)

Switch Mode
Automatic & Manual (through Controller)

Size
Standard, suitable for borewell/farmland installation

Dimension (L*W*H)
Pump: 1200mm x 150mm x 150mm (approx); Controller: 400mm x 320mm x 120mm; Panel: varies as per array configuration

Color
Metallic Silver (Pump), Blue (Controller), Black (Panel)

Weight
Pump + Controller: 35 kg approx., Panels: varies by configuration

Application
Agricultural irrigation, drinking water supply, livestock watering, rural water projects

Type Of Technology
Photovoltaic (Mono/Poly Crystalline)

Installation Type
Outdoor, ground/roof-mounted solar array with submersible/borewell setup

Controller Display
Digital LCD (real-time monitoring & control)

Suitable Water Source
Borewell, open well, river/lake intake

Starting Method
Soft start via MPPT controller

Solar Panel Configuration
Series-parallel, customizable as per site and model

Panel Output Tolerance
3%

Cable Type
Copper, UV resistant, submersible grade

Ambient Humidity Range
Up to 95% RH (non-condensing)

Motor Type
Three-phase AC submersible motor (oil/water filled)

Panel Frame Material
Anodized Aluminum

Enclosure Protection
IP 54/IP 65

Pump Head Range (meters)
80-140 meters (depending on model & site)

Compliance Standards
IEC/IS certified, MNRE Approved

Flow Rate
65000-70000 Liters/Day (varies by well depth and sunlight)

Pump Type
Submersible, centrifugal

10 HP SOLAR WATER PUMP SET About

T Square Motor is a trusted supplier of high-efficiency Solar Pumps, designed to meet the growing demand for sustainable and cost-effective water pumping in agriculture, domestic, and industrial applications. Our solar pumps run directly on solar energy, reducing electricity costs and enabling off-grid operation in rural areas.

Key Features:

Available in AC and DC pump variants
Power range: 0.5 HP to 10 HP
Submersible and surface pump options
High-efficiency MPPT-based solar controllers for maximum power output
Durable construction with corrosion-resistant stainless steel body
Low maintenance and long service life
Built-in protections: dry run, overload, short circuit, reverse polarity
Optional hybrid operation (solar + grid/diesel)

Product Range:

Submersible Solar Pumps Ideal for deep borewells
Surface Solar Pumps Suitable for open wells, ponds, and rivers
AC/DC Solar Pumps Versatile compatibility with solar inverters/controllers
3 HP, 5 HP, 7.5 HP, and 10 HP variants in stock

Applications:

Agricultural irrigation (drip & sprinkler)
Drinking water supply in rural areas
Livestock watering
Government solar pump subsidy schemes
Water lifting from borewells and wells

Why Choose T Square Motor?

Quality-assured solar pump solutions
Competitive pricing and ready stock
Expert guidance on solar system sizing
PAN India delivery and after-sales support

Go green and power your water needs with the sun.
Contact T Square Motor for high-performance Solar Pumps at the best price.

Efficient & Robust Solar Water Pumping Solution

Engineered for reliability, the 10 HP Solar Water Pump Set operates efficiently even under challenging site conditions, thanks to a high-grade, corrosion-resistant construction and intelligent MPPT controller. Users can quickly monitor performance and system health using the digital LCD display, ensuring smooth operations for agricultural and drinking water demands.

Customizable Design for Versatile Applications

This pump set supports a wide pump head range (80-140 meters) and adaptable flow rates, serving different well depths and water source types-including borewell, open well, and river intakes. Modular solar panel arrangements allow customization for optimum efficiency at each site, maximizing water output and energy savings for varying installation requirements.

Smart Operation and Low Maintenance

Automatic and manual control modes enable hands-free or custom operations, while built-in protections guard against over-voltage, overload, overheating, and dry running. Maintenance is kept minimal, requiring only periodic solar panel cleaning and occasional visual inspections, freeing users from frequent service interruptions.

FAQ's of 10 HP SOLAR WATER PUMP SET:

Q: How does the 10 HP Solar Water Pump Set operate, and what power source does it use?

A: The pump operates using photovoltaic solar panels that convert sunlight into electricity, which is managed by an MPPT controller. The controller powers a three-phase AC submersible motor with soft start, ensuring efficient and reliable water pumping without the need for grid electricity.

Q: What is the process for installing this solar water pump set?

A: Installation involves placing the submersible pump in the water source (borewell, open well, or river intake), mounting solar panels on the ground or roof, connecting the panels in a series-parallel arrangement, and configuring the MPPT controller. A qualified installer ensures correct cable routing and system calibration based on site conditions and water requirements.

Q: Where can this solar pump system be used effectively?

A: It is suitable for agricultural fields, farms, rural drinking water projects, livestock watering, and anywhere reliable water extraction from borewells, open wells, or surface sources is needed, especially in off-grid or power-scarce regions.

Q: What are the primary benefits of using this solar pump set over traditional electric pumps?

A: This solar pump set offers eco-friendly operation, significant energy cost savings, automatic functionality, robust protections against system faults, and minimal maintenance-delivering a sustainable and dependable solution for remote and agricultural sites.

Q: What level of maintenance does the system require, and how often should it be performed?

A: The system is designed for low maintenance. Users only need to periodically clean the solar panels to maintain efficiency and visually inspect the pump and cables for signs of wear. No frequent servicing is generally required, thanks to anti-corrosive materials and built-in protections.

Q: When is the solar pump most effective during the day, and what happens in low-sunlight conditions?

A: The pump delivers maximum output during peak sunlight hours, typically from mid-morning to mid-afternoon. In low-sunlight or cloudy weather, the output may decrease, but the MPPT controller optimizes available power to keep the system running efficiently as conditions allow.

Q: How customizable is this pump system for different well depths and site needs?

A: Both the pump head (80-140 meters) and solar panel configuration are customizable based on well depth, site location, and water requirements. Installers can adjust the number of panels and cable lengths to ensure optimal performance and water delivery for each specific application.
