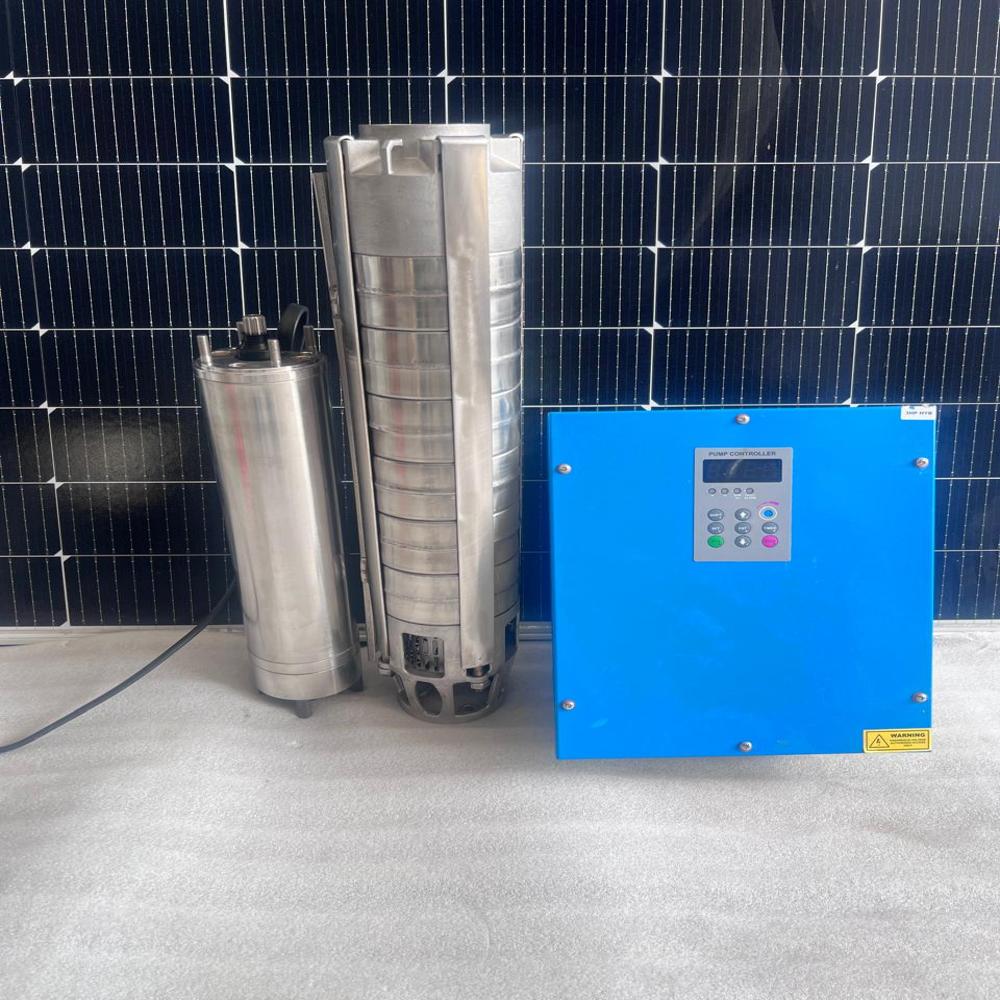

7.5 HP SOLAR WATER PUMP SET

7.5 HP SOLAR WATER PUMP SET Specification

Maintenance Type
Low maintenance

Features
High efficiency, corrosion-resistant, low maintenance, automatic operation, VFD controller

Input Voltage
380-600V DC

Efficiency
Pump Efficiency up to 80%, Solar Panel up to 21%

Product Type
Solar Water Pump Set

Material
Stainless Steel (Pump), Powder Coated Metal (Controller), Monocrystalline Silicon (Panel)

Number of Cells
Varies as per solar array (generally 72 cells/panel)

Power
7.5 HP

Operating Temperature
-10C to +55C

Max Voltage
600V DC (solar array input)

Max System Voltage
1000V DC

Output Voltage
380V AC (3 phase)

Cable Length
Customizable as per requirement

Switch Mode
Automatic/Manual

Size
Standard, as per pump configuration

Dimension (L*W*H)
Depends on pump and controller model

Color
Silver (Pump), Blue (Controller), Black (Solar Panel)

Weight
Varies by pump and panel configuration

Application
Agricultural Irrigation, Drinking Water Supply, Industrial Water Transfer

Type Of Technology
Photovoltaic (PV) technology

Installation Type
Outdoor/Field Installation

Controller Type
Digital Solar Pump Controller with VFD

Protection
Overload, Dry Run, Over Voltage, Under Voltage, Short Circuit

IP Rating
IP54/65 (controller and motor)

Cooling System
Water-cooled motor

Pump Type
Submersible, multistage centrifugal

Panel Type
High-efficiency monocrystalline/Polycrystalline solar module

Control Panel Display
Digital LCD for monitoring and control

Flow Rate
Up to 70,000 liters per hour (varies by configuration)

Head Range
Up to 200 meters (as per model)

Remote Monitoring
Optional (GSM/GPRS based)

Mounting Structure
Galvanized iron for outdoor solar panels

7.5 HP SOLAR WATER PUMP SET About

T Square Motor is a trusted supplier of high-efficiency Solar Pumps, designed to meet the growing demand for sustainable and cost-effective water pumping in agriculture, domestic, and industrial applications. Our solar pumps run directly on solar energy, reducing electricity costs and enabling off-grid operation in rural areas.

Key Features:

Available in AC and DC pump variants
Power range: 0.5 HP to 10 HP
Submersible and surface pump options
High-efficiency MPPT-based solar controllers for maximum power output
Durable construction with corrosion-resistant stainless steel body
Low maintenance and long service life
Built-in protections: dry run, overload, short circuit, reverse polarity
Optional hybrid operation (solar + grid/diesel)

Product Range:

Submersible Solar Pumps Ideal for deep borewells
Surface Solar Pumps Suitable for open wells, ponds, and rivers
AC/DC Solar Pumps Versatile compatibility with solar inverters/controllers
3 HP, 5 HP, 7.5 HP, and 10 HP variants in stock

Applications:

Agricultural irrigation (drip & sprinkler)
Drinking water supply in rural areas
Livestock watering
Government solar pump subsidy schemes
Water lifting from borewells and wells

Why Choose T Square Motor?

Quality-assured solar pump solutions
Competitive pricing and ready stock
Expert guidance on solar system sizing
PAN India delivery and after-sales support

Go green and power your water needs with the sun.
Contact T Square Motor for high-performance Solar Pumps at the best price.

Advanced Digital Controller and Protection

Equipped with a state-of-the-art digital solar pump controller and variable frequency drive (VFD), this 7.5 HP system allows for consistent and safe operation under diverse power conditions. The controller provides multiple protections, including overload, dry run, over/under voltage, and short circuit, significantly reducing the risk of equipment damage. The IP54/65 rating ensures water and dust resistance, suitable for outdoor field installations.

Efficient Water-Cooled Submersible Pump

The submersible multistage centrifugal pump is specifically designed for high-demand applications such as agricultural irrigation, drinking water supply, and industrial transfer. Thanks to its water-cooling and stainless-steel construction, the pump operates efficiently at high head and flow rates, offering pump efficiency up to 80%. Its low-maintenance requirements and corrosion resistance make it ideal for harsh environments.

High-Performance Solar Power Integration

Utilizing high-efficiency solar panels-monocrystalline or polycrystalline-the pump set converts solar energy to usable power with panel efficiencies up to 21%. The galvanized iron mounting structure ensures secure outdoor installation, while optional remote GSM/GPRS monitoring enables real-time performance tracking. This system can be customized for variable cable lengths and output voltage, adapting seamlessly to user requirements.

FAQ's of 7.5 HP SOLAR WATER PUMP SET:

Q: How does the digital solar pump controller with VFD benefit the operation of the pump set?

A: The digital solar pump controller with variable frequency drive (VFD) enables intelligent speed and torque regulation, leading to energy savings, smoother operation, and prolonged motor life. It also ensures reliable automatic or manual control, adapting performance to changing solar input and water demand.

Q: What applications are best suited for the 7.5 HP solar water pump set?

A: This pump set is widely used in agricultural irrigation, drinking water supply, and industrial water transfer, where high volumes or deep well pumping are needed. Its robust design and high efficiency also make it ideal for remote or off-grid locations requiring sustainable water solutions.

Q: When should I consider using the remote monitoring feature?

A: Remote monitoring via GSM/GPRS is especially advantageous when the installation site is distant or unmanned. It allows operators to monitor pump status, performance, and fault alerts in real-time without being onsite, ensuring prompt maintenance and minimizing downtime.

Q: Where can the 7.5 HP solar water pump be installed?

A: Designed for outdoor and field installations, this pump set features a weather-resistant, galvanized iron mounting structure and an IP54/65-rated controller and motor. It is suitable for wells, boreholes, and surface water sources in rural, agricultural, or industrial settings.

Q: What is the process of installing the 7.5 HP solar water pump set?

A: Installation involves mounting the solar panels securely on the galvanized iron structure, connecting the cables with appropriate lengths, and submerging the pump in the water source. The digital controller is then configured for automatic or manual operation. Professional installation is recommended for safety and optimal performance.

Q: How does the pump system ensure longevity and low maintenance?

A: Constructed with stainless steel and powder-coated components, the system resists corrosion and wear. The digital controller's protective features prevent damage from electrical faults, reducing the need for frequent repairs. The water-cooled motor design and efficient operation further contribute to low maintenance requirements.

Q: What are the main benefits of using this solar pump set over traditional systems?

A: Key advantages include significant energy savings through solar power, reliable operation with multi-protection digital control, reduced maintenance through high-quality materials, and adaptability to remote sites. Automatic operation and optional remote monitoring further enhance convenience and efficiency.
